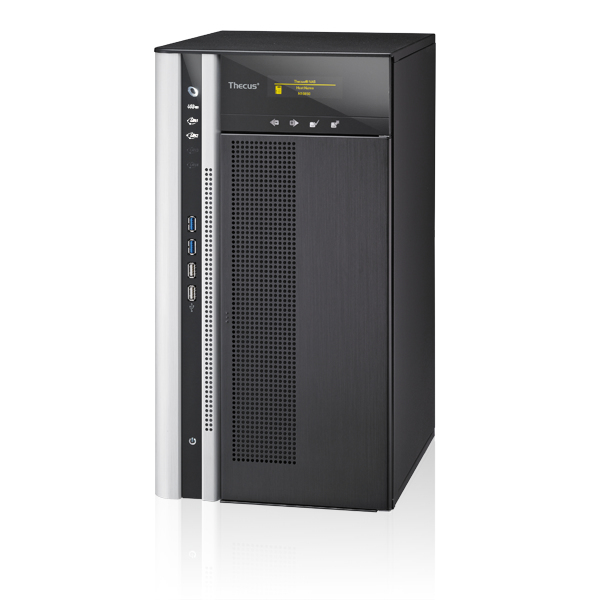

Origin Storage Thecus N10850 with 20TB
Model Thecus N10850 with 20TBPart no. N10850/20TBEAN 5055146595588
150 specifications
- ProcessorIntel® Xeon® E3 Family
- Memory4 GB
- Speed1000 Mbit/s
- TypeNAS
- OSLinux
- Weight12.6 kg
Overview
- Processor
- Intel® Xeon® E3 Family
- Memory
- 4 GB
- Speed
- 1000 Mbit/s
- Type
- NAS
- OS
- Linux
- Weight
- 12.6 kg
- Brand
- Origin Storage
- Category
- NAS & Storage Servers
- Model
- Thecus N10850 with 20TB
- Part number
- N10850/20TB
- EAN / UPC
- 5055146595588
- Also known as
- Origin Storage Thecus N10850 inc 20TB of SATA 10 x 2TB SATA Drives installed
Specifications
150 specifications in 15 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 20 TB |
| Number of storage drives installed | 10 |
| Number of storage drives supported | 10 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 2 TB |
| Storage drive interface | Serial ATA |
| Storage drive size | 2.5/3.5" |
| HDD speed | Variable |
| Maximum supported storage capacity | 80 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | ext3, ext4, XFS |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1225 |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 6 MB |
| L3 cache | 6 MB |
| Bus type | DMI |
| CPU configuration (max) | 1 |
| CPU multiplier (bus/core ratio) | 31 |
| ECC supported by processor | Yes |
| Number of processors installed | 1 |
| PCI Express slots version | 2.0 |
| Processor cache type | Smart Cache |
| Processor code | SR00G |
| Processor codename | Sandy Bridge |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1155 (Socket H2) |
| Stepping | D2 |
| System bus rate | 5 GT/s |
| Tcase | 72.6 °C |
| Thermal Design Power (TDP) | 95 W |
| On-board graphics card model | Intel® HD Graphics P3000 |
| Maximum internal memory supported by processor | 32 GB |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| DHCP client | Yes |
| DHCP server | No |
| Quality of Service (QoS) support | No |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Fiber ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| eSATA ports quantity | 0 |
| HDMI ports quantity | 1 |
| Serial ports quantity | 0 |
| RS-232 ports | 0 |
| External mini-SAS ports | 0 |
| FireWire 400 | No |
| FireWire 800 | No |
| Thunderbolt ports quantity | 0 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card base frequency | 850 MHz |
| On-board graphics card dynamic frequency (max) | 1350 MHz |
| Number of displays supported (on-board graphics) | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black, Silver |
| Housing material | Aluminium |
| Number of fans | 1 fan(s) |
| Drive bay locking | Yes |
| LED indicators | Yes |
| Built-in display | Yes |
| Display type | OLED |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Built-in optical drive | No |
| Card reader integrated | No |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Built-in BitTorrent client | Yes |
| MAC address filtering | No |
| On/off switch | Yes |
| Reset button | Yes |
| Security algorithms | 256-bit AES |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
| Server operating systems supported | Windows 2000 Advanced Server, Windows 2000 Server, Windows Home Server 2011, Windows MultiPoint Server 2011, Windows SBS 2011 Essentials, Windows SBS 2011 Standard, Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 |
| Other operating systems supported | Android, iOS, Windows Embedded Standard 7 64-bit, Windows Phone |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 400 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | No |
| AC input voltage | 110-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 282.6 mm |
| Depth | 235 mm |
| Height | 435.4 mm |
| Weight | 12.6 kg |
Packaging content
| Specification | Value |
|---|---|
| External power adapter | No |
| Cables included | AC, LAN (RJ-45) |
| Quick installation guide | Yes |
| Quick start guide | Yes |
| Rack mount kit | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Maximum number of PCI Express lanes | 20 |
| Thermal Monitoring Technologies | Yes |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3-SDRAM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Other features
| Specification | Value |
|---|---|
| Carrier-less drive bays | No |
| Compliance certificates | RoHS |
| Link/Act LED | Yes |
| Power LED | Yes |
| Power management | Yes |
| Processor ARK ID | 52270 |
