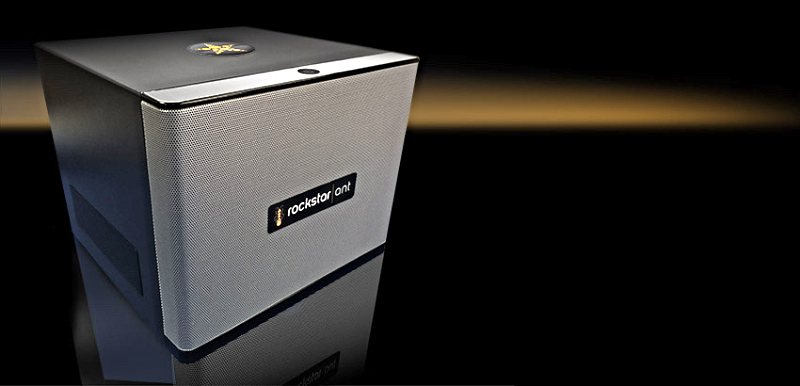

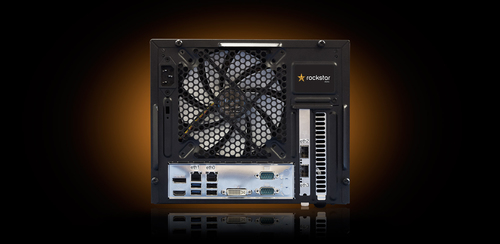

Origin Storage Rockstar Ant 6TB

Model Rockstar Ant 6TBPart no. RS-ANT6SREAN 5055146640998

136 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: Rockstar Ant 6TB
Part number: RS-ANT6SR
EAN / UPC: 5055146640998
Also known as: Origin Storage Rockstar Ant 3x2TB SATA Raid 5 4TB Useable Capacity

136 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	3
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA III
Storage drive size	3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	3 TB
RAID support	Yes
RAID levels	5, JBOD
Hot-swap drive bays	No
Supported file systems	XFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V3 Family
Processor model	E3-1226V3
Processor frequency	3.3 GHz
Processor boost frequency	3.7 GHz
Processor cores	4
Processor threads	4
Processor cache	8 MB
L2 cache	8 MB
Bus type	DMI2
CPU configuration (max)	1
ECC supported by processor	Yes
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v3
Processor socket	LGA 1150 (Socket H3)
Scalability	1S
Stepping	C0
System bus rate	5 GT/s
Thermal Design Power (TDP)	84 W
On-board graphics card model	Intel® HD Graphics P4600
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	No

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Fiber ports quantity	0
VGA (D-Sub) ports quantity	0
eSATA ports quantity	1
HDMI ports quantity	1

Specification	Value
On-board graphics card DirectX version	11.2
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3

Specification	Value
Operating system installed	Rockstar OS
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	550 W
Number of power supply units	1
Redundant power supply (RPS) support	No
AC input voltage	100-240 V
AC input frequency	47/63 Hz

Specification	Value
Quick installation guide	Yes

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel I/O Acceleration Technology	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Maximum number of PCI Express lanes	16
Number of QPI links	0
Number of execution units	20
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Compliance certificates	RoHS
Processor ARK ID	80917
