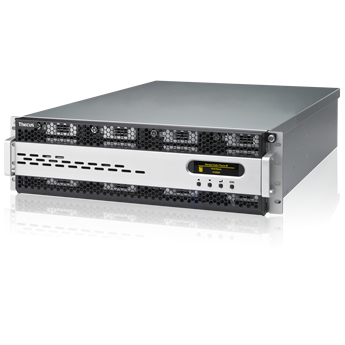

Origin Storage N16000-16000 Intel® Xeon® 3000 Sequence X3480

4 GB DDR3 16.384 TB

Model N16000-16000Part no. M153934

67 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: N16000-16000
Part number: M153934
Also known as: Origin Storage N16000-16000 Intel® Xeon® 3000 Sequence X3480 4 GB DDR3 16.384 TB

67 specifications in 9 groups

Specification	Value
Total installed storage capacity	16.384 TB
Number of storage drives installed	16
Number of storage drives supported	16
Storage drive capacity	1 TB
Storage drive interface	Serial ATA
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 3000 Sequence
Processor model	X3480
Processor frequency	3.06 GHz
Processor boost frequency	3.73 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	23
ECC supported by processor	Yes
PCI Express configurations	1x16, 2x8, 4x4
PCI Express slots version	2.0
Physical Address Extension (PAE)	36 bit
Processing Die size	296 mm²
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1156 (Socket H)
Stepping	B1
System bus rate	2.5 GT/s
Tcase	72.7 °C
Thermal Design Power (TDP)	95 W
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	2

Specification	Value
Display type	OLED

Specification	Value
Power supply unit (PSU) capacity	700 W

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	1.0
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	774 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80%

Specification	Value
Compatible operating systems	Windows 2000/2003/XP/Vista/7 UNIX/Linux Mac OS 9/X
Networking features	Gigabit Ethernet
Power LED	Yes
Processor ARK ID	48501
