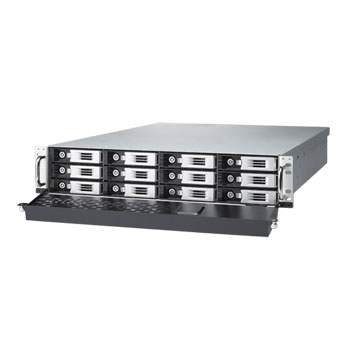

Origin Storage Thecus 12 Bay NAS Bare Box
Model N12000PROEAN 5055146588382
120 specifications
- ProcessorIntel® Xeon® E3 Family
- Memory8 GB
- TypeNAS
- OSLinux
- ColourStainless steel
- Storage drives installedNo
Overview
- Processor
- Intel® Xeon® E3 Family
- Memory
- 8 GB
- Type
- NAS
- OS
- Linux
- Colour
- Stainless steel
- Storage drives installed
- No
- Brand
- Origin Storage
- Category
- NAS & Storage Servers
- Model
- N12000PRO
- Part number
- N12000PRO
- EAN / UPC
- 5055146588382
- Also known as
- Origin Storage Thecus 12 Bay NAS Bare Box
Specifications
120 specifications in 14 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive size | 2.5/3.5" |
| HDD speed | Variable |
| Maximum supported storage capacity | 48000 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | ext3, ext4, XFS |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1275 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 3.8 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| L3 cache | 8 MB |
| Bus type | DMI |
| CPU configuration (max) | 1 |
| CPU multiplier (bus/core ratio) | 3.4 |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Motherboard chipset | Intel® 3450 |
| Number of processors installed | 1 |
| PCI Express slots version | 2.0 |
| Processor cache type | Smart Cache |
| Processor code | SR00P |
| Processor codename | Sandy Bridge |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1155 (Socket H2) |
| Stepping | D2 |
| System bus rate | 5 GT/s |
| Tcase | 72.6 °C |
| Thermal Design Power (TDP) | 95 W |
| On-board graphics card model | Intel® HD Graphics P3000 |
| Maximum internal memory supported by processor | 32 GB |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| DHCP client | Yes |
| DHCP server | Yes |
| iSCSI support | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Supported network protocols | TCP/IP, CIFS/SMB, AFP, NFS, HTTP, HTTPS, FTP, FTP-SSL/TLS,SNMP |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity | 0 |
| eSATA ports quantity | 1 |
| HDMI ports quantity | 1 |
| Serial ports quantity | 1 |
| eSATA | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card base frequency | 850 MHz |
| On-board graphics card dynamic frequency (max) | 1350 MHz |
| Number of displays supported (on-board graphics) | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Stainless steel |
| Housing material | Aluminium |
| Number of fans | 4 fan(s) |
| LED indicators | Yes |
| Display type | OLED |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 700 W |
| Redundant power supply (RPS) support | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 662 mm |
| Height | 89 mm |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Maximum number of PCI Express lanes | 20 |
| Thermal Monitoring Technologies | Yes |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3-SDRAM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Other features
| Specification | Value |
|---|---|
| Processor ARK ID | 52277 |
