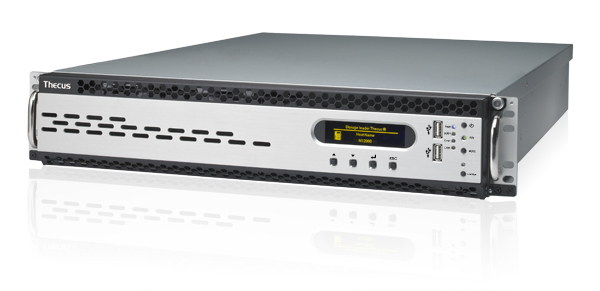

Origin Storage N12000 36TB

Model N12000 36TBPart no. N12000-36000NLSEAN 5055146567721

90 specifications

Overview

Brand: Origin Storage
Category: NAS & Storage Servers
Model: N12000 36TB
Part numbers: N12000-36000NLS, N12000-36000
EAN / UPC: 5055146567721, 5055146567387
Also known as: Origin Storage Thecus 12 Bay NAS iSCSI SATA/SAS 10Gb Ready with 36Tb NLS Installed 12 x 3Tb NL SAS HDD

90 specifications in 11 groups

Specification	Value
Total installed storage capacity	36 TB
Number of storage drives installed	12
Storage drive capacity	3 TB
Storage drive interface	Serial ATA III
Maximum supported storage capacity	36 TB
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Supported file systems	ext3, ext4, XFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 3000 Sequence
Processor model	X3470
Processor frequency	2.93 GHz
Processor boost frequency	3.6 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	22
ECC supported by processor	Yes
Motherboard chipset	Intel® 3450
Number of processors installed	1
PCI Express configurations	1x16, 2x8, 4x4
PCI Express slots version	2.0
Physical Address Extension (PAE)	36 bit
Processing Die size	296 mm²
Processor cache type	Smart Cache
Processor code	SLBJH
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1156 (Socket H)
Stepping	B1
System bus rate	2.5 GT/s
Tcase	72.7 °C
Thermal Design Power (TDP)	95 W
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3

Specification	Value
iSCSI support	Yes
Maximum data transfer rate	10000 Mbit/s
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP, TCP/IP/AppleTalk

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	1
Serial ports quantity	1
eSATA	Yes

Specification	Value
LED indicators	Power, Progress, Temperature
Display type	OLED

Specification	Value
Power supply unit (PSU) capacity	700 W
Redundant power supply (RPS) support	Yes

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	774 M
Physical Address Extension (PAE)	Yes
Thermal Monitoring Technologies	No
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80%

Specification	Value
Compatible operating systems	Windows 2000/XP/2003/Vista, Windows 7 UNIX/Linux Mac OS 9/X
Fan	Yes
Networking features	Gigabit Ethernet
Serial interface type	RS-232
Processor ARK ID	42932
Clustering support	Yes
Expansion slots	PCI-e x8 PCI-e x4 PCI-e x1
Integrated file serving (NAS)	Yes
RAID controller type	AES256
Rack servers (supported)	2U
Storage drive controller	LSI 2008 HBA
