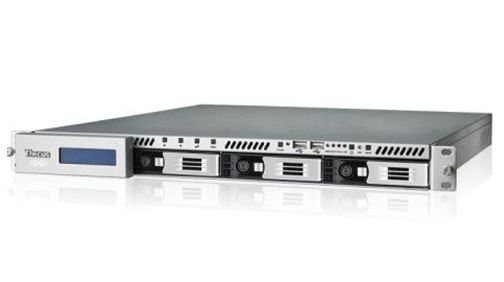

Origin Storage Thecus 4 Bay Rackmount NAS Enclosure

Origin Storage Thecus 4 Bay Rackmount NAS Enclosure

Model 1U4200XXXREAN 5055146568643

69 specifications

ProcessorIntel Atom®
Memory1 GB
Speed1000 Mbit/s
Total installed storage capacity0 TB
Processor manufacturerIntel
iSCSI supportYes

See all specifications

Overview

Processor: Intel Atom®
Memory: 1 GB
Speed: 1000 Mbit/s
Total installed storage capacity: 0 TB
Processor manufacturer: Intel
iSCSI support: Yes

Brand: Origin Storage
Category: NAS & Storage Servers
Model: 1U4200XXXR
Part number: 1U4200XXXR
EAN / UPC: 5055146568643
Also known as: Origin Storage Thecus 4 Bay Rackmount NAS Enclosure

Specifications

69 specifications in 10 groups

Storage

Specification	Value
Total installed storage capacity	0 TB
Number of storage drives installed	0
Storage drive capacity	0 GB
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, XFS, ZFS

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR3
Maximum RAM supported	1 GB

Network

Specification	Value
iSCSI support	Yes
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP/Appletalk

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	5
eSATA	Yes

Performance

Specification	Value
Management protocols	SMB/CIFS, HTTP/HTTPS, FTP, TFTP, NFS v3, AFP
Web-based management	Yes
On/off switch	Yes
Reset button	Yes

Power

Specification	Value
Power supply unit (PSU) capacity	250 W
Redundant power supply (RPS) support	Yes

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80%

Other features

Specification	Value
Compatible operating systems	Windows 2000/XP/2003/Vista/7 UNIX/Linux Mac OS X
Link/Act LED	Yes
Networking features	Gigabit Ethernet
Power LED	Yes
Serial interface type	RS-232
Processor ARK ID	49490
