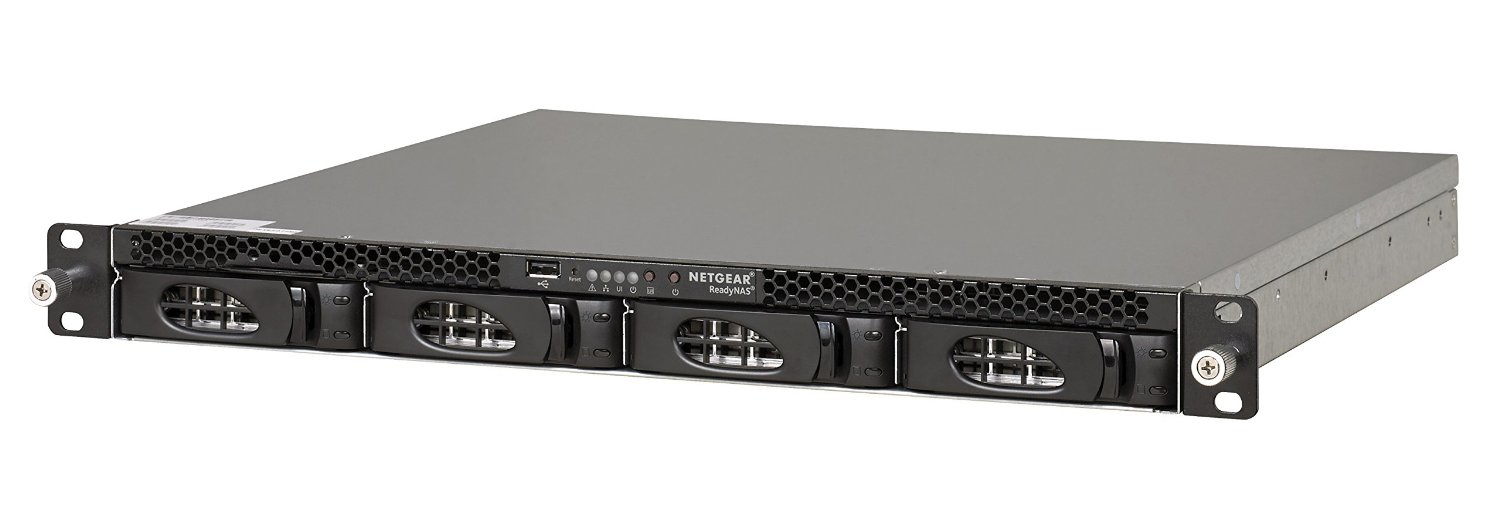

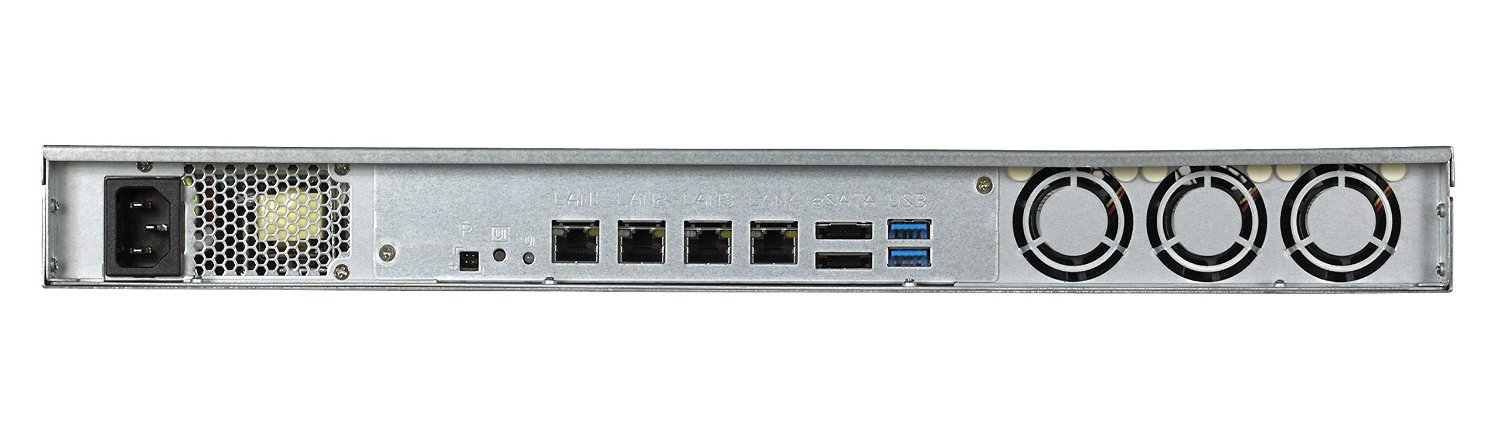

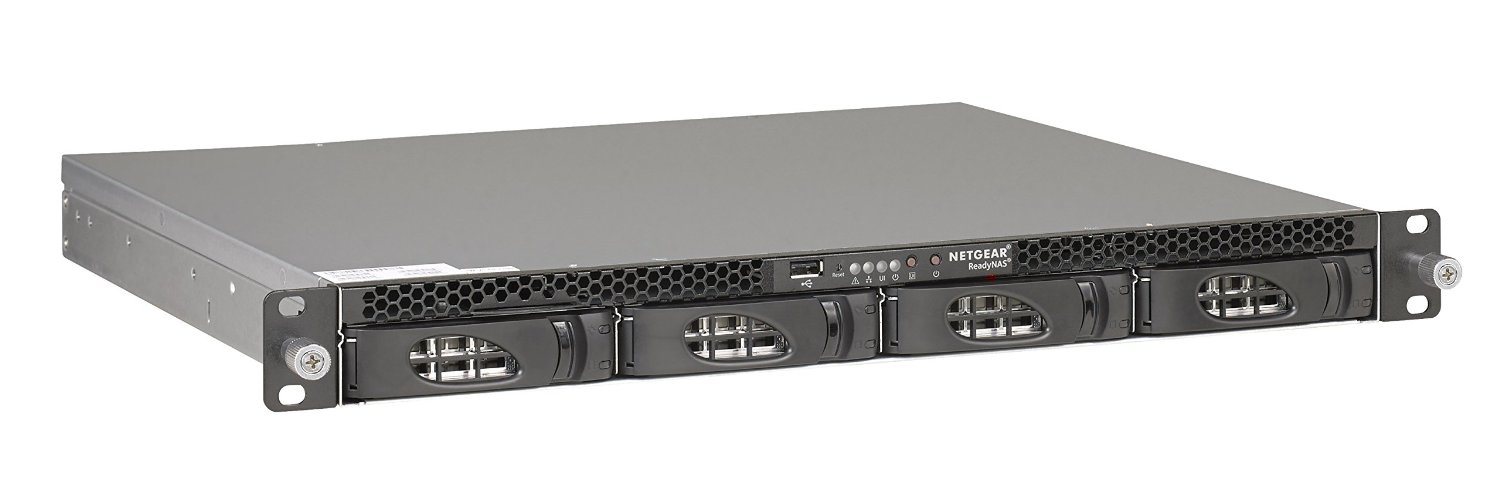

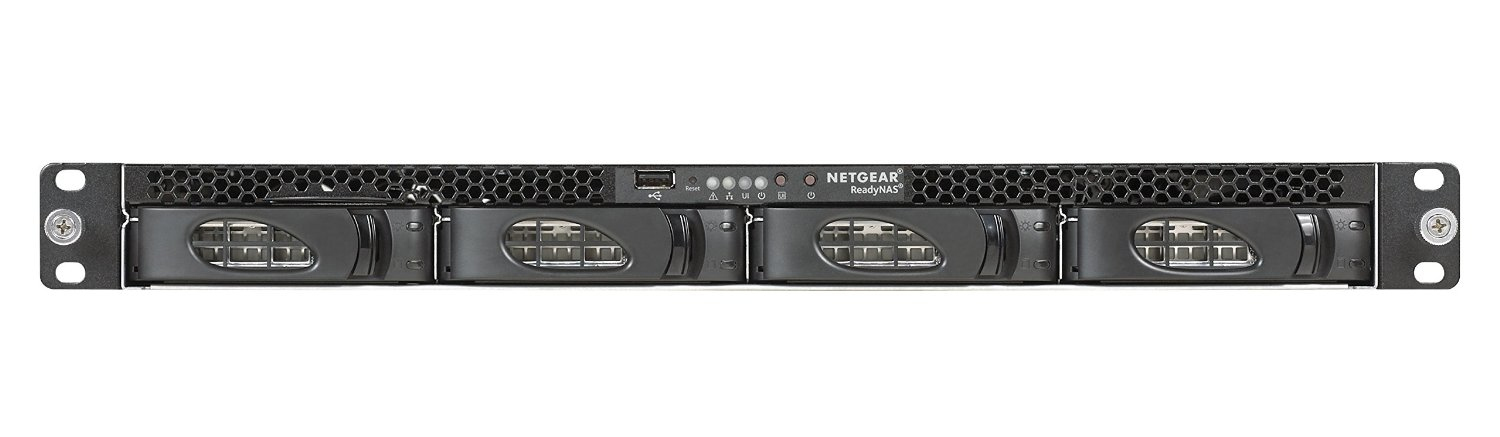

NETGEAR RN3138 NAS Rack (1U) Intel Atom® C2558

4 GB 12 TB HDD Black

Model RN3138Part no. RN3138+8TBSEAIW

117 specifications

Overview

Brand: NETGEAR
Category: NAS & Storage Servers
Model: RN3138
Part numbers: RN3138+8TBSEAIW, RN3138+12TBSEAIW, RN3138+16TBHGST, RN3138+16TBSEAIW, RN3138+24TBHGST, RN3138+24TBSEAIW +6 more
Also known as: NETGEAR RN3138 NAS Rack (1U) Intel Atom® C2558 4 GB 12 TB HDD Black

117 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	12 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	3 TB
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, ext3, ext4
Bad block scan	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	C2558
Processor frequency	2.4 GHz
Processor cores	4
Processor threads	4
Processor cache	2 MB
CPU configuration (max)	1
ECC supported by processor	Yes
PCI Express slots version	2.0
Physical Address Extension (PAE)	36 bit
Processor cache type	L3
Processor code	SR1CZ
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	34 x 28 mm
Processor socket	BGA 1283
Stepping	B0
Thermal Design Power (TDP)	15 W
Maximum internal memory supported by processor	64 GB
Conflict-Free processor	No

Specification	Value
Internal memory	4 GB
Flash memory	128 MB

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Compliance industry standards	ENGR 10049 EST, ENGR 10045 EVT, ENGR 10048 CVT, ENGR 10046, ENGR 10023 HALT, ENGR 10036 CDG
Dynamic IP	Yes
Link aggregation	Yes
Load balancing system	Yes
Static IP	Yes
Supported network protocols	TCP/IP, IPv4, IPv6, IEEE 802.3a, SSH, SNMP v2, v3, NTP

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	2

Specification	Value
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud, USB drive
Multilingual support	Yes
Number of users	80 user(s)
Noise level	28 dB
Built-in optical drive	No
Card reader integrated	No
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Microsoft Internet Exploer 9+, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+
Built-in FTP server	Yes
Built-in UPnP AV media server	Yes
Built-in iTunes server	Yes
Disk scan	Yes
Hot spare	Yes
Network Time Protocol (NTP) client	Yes
Remotely operated	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES
Share folder	1024

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012 R2
Other operating systems supported	Android, Solaris 10, Solaris 11, Solaris 8, Solaris 9, iOS

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	180 W
Number of power supply units	1
Power consumption (typical)	55 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel QuickAssist Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	16
Physical Address Extension (PAE)	Yes
UART	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Compliance certificates	RoHS
Certification	FCC Class B, CE Class B, VCCI Class B
Processor ARK ID	77983
