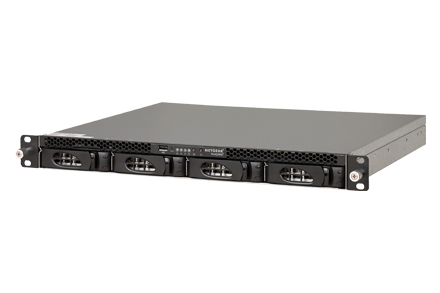

NETGEAR RN31342E NAS Rack (1U) Intel Atom® C2338

NETGEAR RN31342E NAS Rack (1U) Intel Atom® C2338

2 GB DDR3 24 TB Black

Model RN31342EPart no. RN31342E-100NESEAN 606449108859

76 specifications
  • ProcessorIntel Atom®
  • Memory2 GB
  • TypeNAS
  • Weight5.21 kg
  • ColourBlack
  • Storage drives installedYes
See all specifications

Overview

Processor
Intel Atom®
Memory
2 GB
Type
NAS
Weight
5.21 kg
Colour
Black
Storage drives installed
Yes
Brand
NETGEAR
Model
RN31342E
Part number
RN31342E-100NES
EAN / UPC
606449108859, 6064491088590
Also known as
NETGEAR RN31342E NAS Rack (1U) Intel Atom® C2338 2 GB DDR3 24 TB Black

Specifications

76 specifications in 12 groups

Storage

Storage drives installedYes
Total installed storage capacity24 TB
Number of storage drives installed4
Number of storage drives supported4
Supported storage drive typesHDD & SSD
Storage drive capacity8 TB
Storage drive interfaceSerial ATA
Storage drive size2.5/3.5"
Maximum supported storage capacity24 TB
Hot-swap drive baysYes

Processor

Processor manufacturerIntel
Processor familyIntel Atom®
Processor modelC2338
Processor frequency1.7 GHz
Processor boost frequency2 GHz
Processor cores2
Processor threads2
Processor cache1 MB
ECC supported by processorYes
PCI Express slots version2.0
Physical Address Extension (PAE)36 bit
Processor cache typeL3
Processor codeSR1S8
Processor lithography22 nm
Processor operating modes32-bit, 64-bit
Processor package size34 x 28 mm
Processor socketBGA 1283
SteppingB0
Thermal Design Power (TDP)7 W
Maximum internal memory supported by processor16 GB
Conflict-Free processorYes

Memory

Internal memory2 GB
Internal memory typeDDR3

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
DHCP clientYes
Quality of Service (QoS) supportYes
iSCSI supportYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0

Design

Chassis typeRack (1U)
Cooling typeActive
Product colourBlack
Number of fans3 fan(s)
Fan diameter4 cm
LED indicatorsYes

Performance

TypeNAS
Backup functionYes
On/off switchYes

Power

Power consumption (typical)180 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width406 mm
Depth486 mm
Height44 mm
Weight5.21 kg

Processor special features

Embedded options availableYes
Execute Disable BitYes
Graphics & IMC lithography22 nm
Intel 64Yes
Intel QuickAssist TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Turbo Boost Technology2.0
Maximum number of PCI Express lanes8
Physical Address Extension (PAE)Yes
UARTYes
Memory channels supported by processorSingle
Memory types supported by processorDDR3-SDRAM, DDR3L-SDRAM

Logistics data

Harmonized System (HS) code84714100

Other features

Processor ARK ID77976
