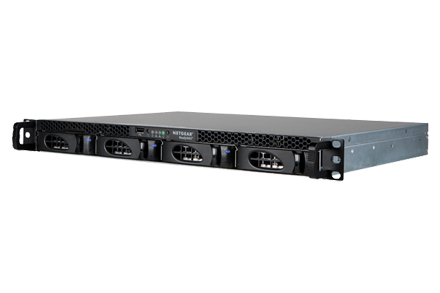

NETGEAR ReadyNAS RN31843D

Model ReadyNAS RN31843DPart no. RN31843D+4TB-S-IW

104 specifications

Overview

Brand: NETGEAR
Category: NAS & Storage Servers
Model: ReadyNAS RN31843D
Part numbers: RN31843D+4TB-S-IW, RN31843D+4TB-S-IWSRS, RN31843D-100NES+8TB-S-IW, RN31843D-100NES+8TB-S-IWSRS, RN31843D-100NES/56TB-IW
Also known as: NETGEAR ReadyNAS RN31843D NAS Rack (1U) Intel Atom® C2558 4 GB 4 TB HDD ReadyNAS OS Black, Grey

104 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	4 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	1 TB
Storage drive interface	Serial ATA III
Storage drive size	3.5"
Storage drive sizes supported	2.5,3.5"
Maximum supported storage capacity	32 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	C2558
Processor frequency	2.4 GHz
Processor cores	4
Processor threads	4
Processor cache	2 MB
ECC supported by processor	Yes
PCI Express slots version	2.0
Physical Address Extension (PAE)	36 bit
Processor cache type	L3
Processor code	SR1CZ
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	34 x 28 mm
Processor socket	BGA 1283
Stepping	B0
Thermal Design Power (TDP)	15 W
Maximum internal memory supported by processor	64 GB
Conflict-Free processor	No

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	TCP/IP, IPv4, IPv6, NTP

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
eSATA ports quantity	2

Specification	Value
Operating system installed	ReadyNAS OS
Operating system version	6.4
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1
Linux operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Other operating systems supported	Android, iOS

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	180 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel QuickAssist Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	16
Physical Address Extension (PAE)	Yes
UART	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
