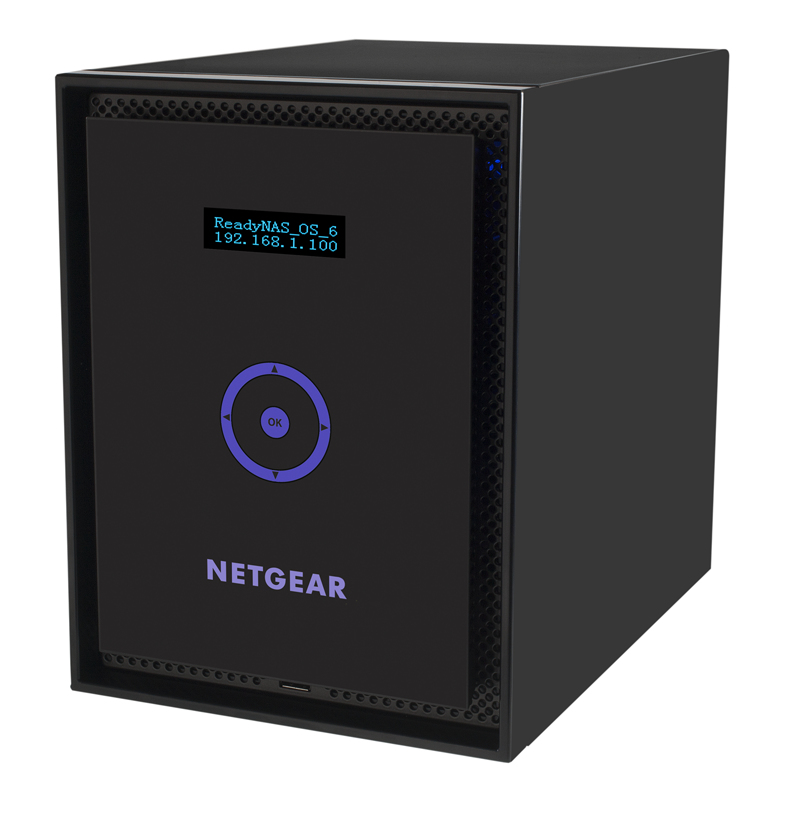

NETGEAR ReadyNAS 716X

Model ReadyNAS 716XPart no. RN716X-100NES + 6X ST4000NC000

125 specifications

Overview

Brand: NETGEAR
Category: NAS & Storage Servers
Model: ReadyNAS 716X
Part numbers: RN716X-100NES + 6X ST4000NC000, RN716X-100NES/KIT, RN716X-100NES + 6X ST2000NC000, RN716X-100NES + 6X ST3000NC000, RN716X-100NES + 6X ST2000VX000, RN716X-100NES + 6X ST3000VX000 +2 more
Also known as: NETGEAR ReadyNAS 716X NAS Desktop Intel® Xeon® E3 V2 Family E3-1265LV2 16 GB 0 TB ReadyNAS OS Black

125 specifications in 14 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	6
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Storage drive interface	Serial ATA
Storage drive size	2.5/3.5"
Maximum supported storage capacity	36 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V2 Family
Processor model	E3-1265LV2
Processor frequency	2.5 GHz
Processor boost frequency	3.5 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
Bus type	DMI
ECC supported by processor	Yes
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor code	SR0PB
Processor codename	Ivy Bridge
Processor lithography	-, 22
Processor operating modes	64-bit
Processor socket	LGA 1155 (Socket H2)
Stepping	E1
System bus rate	5 GT/s
Thermal Design Power (TDP)	45 W
On-board graphics card model	Intel® HD Graphics P4000
Maximum internal memory supported by processor	32 GB
Conflict-Free processor	No

Specification	Value
Internal memory	16 GB
Flash memory	128 MB

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	TCP/IP, IPv4, IPv6, NTP

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
eSATA ports quantity	3
HDMI ports quantity	1

Specification	Value
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3

Specification	Value
Operating system installed	ReadyNAS OS
Operating system version	6
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Other operating systems supported	Android, iOS

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	200 W
Number of power supply units	1
Power consumption (typical)	96 W
Power consumption (off)	0.42 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Identity Protection Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
