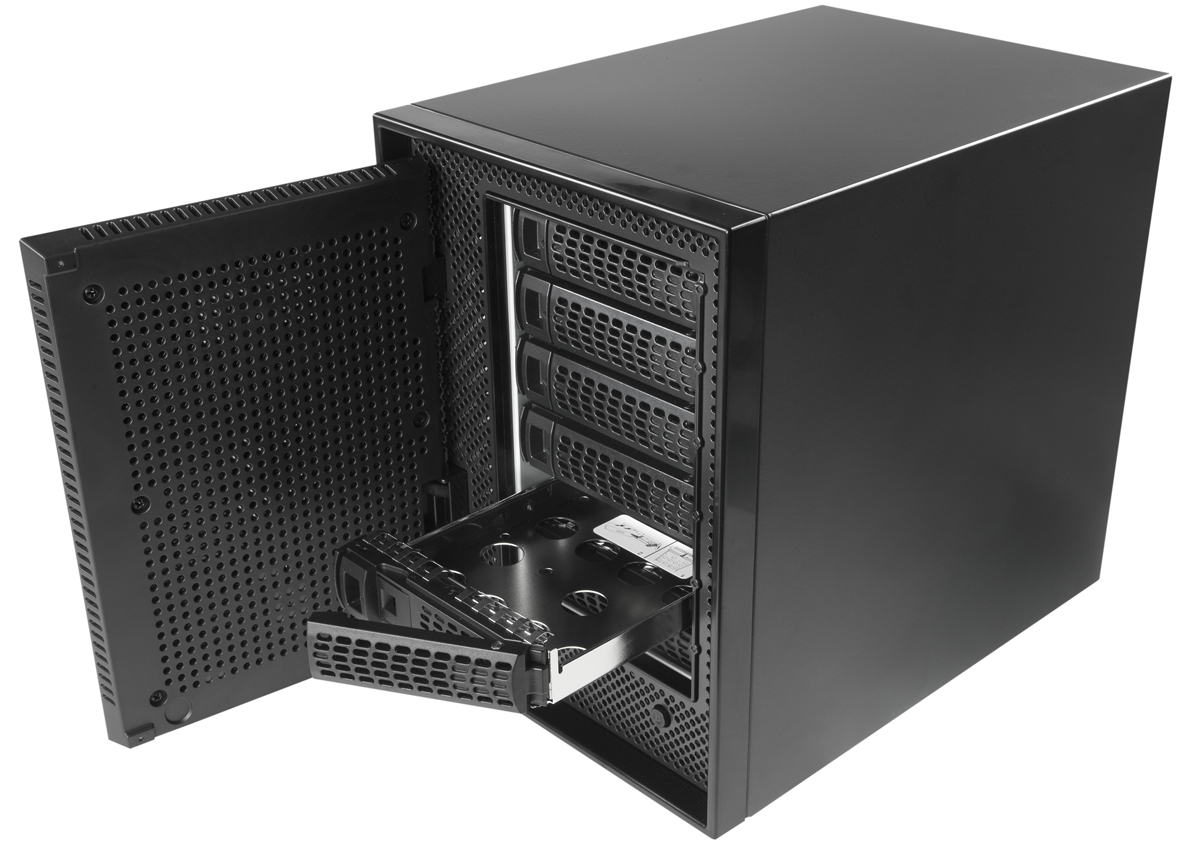

NETGEAR ReadyNAS 516 + 6x WD20EFRX

Model ReadyNAS 516 + 6x WD20EFRXPart no. RN51600-100EUS+6XWD20EFRX

138 specifications

Overview

Brand: NETGEAR
Category: NAS & Storage Servers
Model: ReadyNAS 516 + 6x WD20EFRX
Part number: RN51600-100EUS+6XWD20EFRX
Also known as: NETGEAR ReadyNAS 516 + 6x WD20EFRX NAS Desktop Intel® Core™ i3 i3-3220 4 GB DDR3 12 TB HDD ReadyNAS OS Black

138 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	12 TB
Number of storage drives installed	6
Number of storage drives supported	6
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA
Storage drive size	2.5/3.5"
HDD speed	Variable
Maximum supported storage capacity	24 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	3rd gen Intel® Core™ i3
Processor model	i3-3220
Processor frequency	3.3 GHz
Processor cores	2
Processor threads	4
Processor cache	3 MB
L3 cache	3 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	33
ECC supported by processor	Yes
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Core i3-3200 Desktop Series
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Tcase	65.3 °C
Thermal Design Power (TDP)	55 W
On-board graphics card model	Intel® HD Graphics 2500
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	TCP/IP, IPv4, IPv6, VLAN, SSH, SNMP, NTP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
eSATA ports quantity	3
HDMI ports quantity	1

Specification	Value
On-board graphics card ID	0x152
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3

Specification	Value
Operating system installed	ReadyNAS OS
Operating system version	6
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	200 W
Number of power supply units	1
Power consumption (typical)	88 W
Power consumption (sleep)	0.956 W
Power consumption (off)	0.37 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
