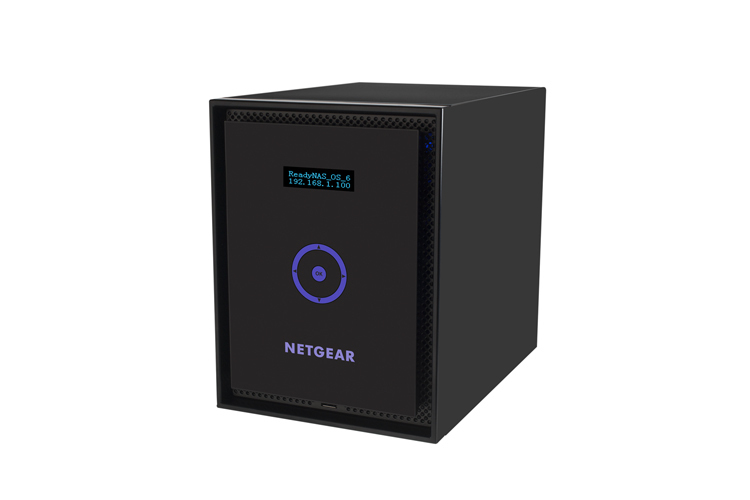

NETGEAR ReadyNAS 516

NETGEAR ReadyNAS 516

Model ReadyNAS 516Part no. RN51600-100EUS + 6X ST4000VX002EAN 5052916660118

114 specifications
  • ProcessorIntel® Core™ i3
  • Memory4 GB
  • Noise28 dB
  • Weight7.97 kg
  • ColourBlack
  • Total installed storage capacity0 TB
See all specifications

Overview

Processor
Intel® Core™ i3
Memory
4 GB
Noise
28 dB
Weight
7.97 kg
Colour
Black
Total installed storage capacity
0 TB
Brand
NETGEAR
Model
ReadyNAS 516
Part numbers
RN51600-100EUS + 6X ST4000VX002, RN51600-100EUS + 6X ST4000NC000, RN51600-100EUS, RN51661E-100EUS, RN51662E-100EUS, RN51663E-100EUS +9 more
EAN / UPC
5052916660118, 606449093841, 10606449093848, 5053973599120 +21 more
Also known as
NETGEAR ReadyNAS 516 Mini Tower Intel® Core™ i3 i3-3220 4 GB 0 TB Black

Specifications

114 specifications in 15 groups

Storage

Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported6
Storage drive capacity0 GB
Storage drive interfaceSerial ATA
Storage drive size2.5/3.5"
Maximum supported storage capacity24 TB
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD
Hot-swap drive baysYes
Supported file systemsext3, ext4, FAT32, HFS+, NTFS

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i3
Processor generation3rd gen Intel® Core™ i3
Processor modeli3-3220
Processor frequency3.3 GHz
Processor cores2
Processor threads4
Processor cache3 MB
L3 cache3 MB
Bus typeDMI
CPU configuration (max)1
CPU multiplier (bus/core ratio)33
ECC supported by processorYes
Number of processors installed1
PCI Express configurations1x16, 2x8
PCI Express slots version2.0
Processor cache typeSmart Cache
Processor codenameIvy Bridge
Processor lithography22 nm
Processor operating modes64-bit
Processor package size37.5 x 37.5 mm
Processor seriesIntel Core i3-3200 Desktop Series
Processor socketLGA 1155 (Socket H2)
System bus rate5 GT/s
Tcase65.3 °C
Thermal Design Power (TDP)55 W
On-board graphics card modelIntel® HD Graphics 2500
Maximum internal memory supported by processor32 GB
Memory bandwidth supported by processor (max)25.6 GB/s
Conflict-Free processorYes

Memory

Internal memory4 GB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
DHCP clientYes
Jumbo frames supportYes
iSCSI supportYes
Cabling technology10/100/1000Base-T(X)

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0
eSATA ports quantity3
eSATAYes

Graphics

On-board graphics card ID0x152
On-board graphics card base frequency650 MHz
On-board graphics card dynamic frequency (max)1050 MHz
Number of displays supported (on-board graphics)3

Design

Chassis typeMini Tower
Product colourBlack
Number of fans1 fan(s)
LED indicatorsYes
Display typeLCD

Performance

Number of users8192 user(s)
Noise level28 dB
Access Control List (ACL)Yes
Security algorithms256-bit AES

Software

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Power

Power supply unit (PSU) capacity200 W
Power consumption (typical)189 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width192 mm
Depth287.5 mm
Height259 mm
Weight7.97 kg

Packaging content

External power adapterNo

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyNo
Intel® Turbo Boost TechnologyNo
Intel® Wireless Display (Intel® WiDi)Yes
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2011C
Memory channels supported by processorDual
Memory types supported by processorDDR3-SDRAM

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 95%

Other features

Processor ARK ID65693
