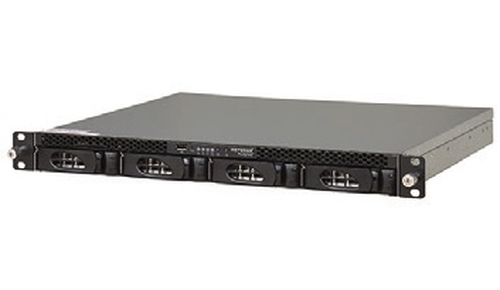

NETGEAR ReadyNAS 4220X

Model ReadyNAS 4220XPart no. RN4220X-100NES + 12X ST4000VX000

120 specifications

Overview

Brand: NETGEAR
Category: NAS & Storage Servers
Model: ReadyNAS 4220X
Part numbers: RN4220X-100NES + 12X ST4000VX000, RN4220X-100NES + 12X ST4000VX002, RN4220X-100NES + 12X ST4000NC000
Also known as: NETGEAR ReadyNAS 4220X NAS Rack (2U) Intel® Xeon® E3 V2 Family E3-1225V2 8 GB DDR3 48 TB Black

120 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	48 TB
Number of storage drives installed	12
Number of storage drives supported	12
Supported storage drive types	HDD & SSD
Storage drive capacity	4 TB
Storage drive interface	Serial ATA
Storage drive size	2.5/3.5"
Maximum supported storage capacity	48 TB
RAID support	Yes
RAID levels	1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V2 Family
Processor model	E3-1225V2
Processor frequency	3.2 GHz
Processor boost frequency	3.6 GHz
Processor cores	4
Processor threads	4
Processor cache	8 MB
L3 cache	8 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	32
ECC supported by processor	Yes
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor socket	LGA 1155 (Socket H2)
Stepping	E1
System bus rate	5 GT/s
Thermal Design Power (TDP)	77 W
On-board graphics card model	Intel® HD Graphics P4000
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	No

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	TCP/IP, IPv4, IPv6, UPnP, Bonjour, SNMP v2/v3, SSH, NTP

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	2

Specification	Value
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1250 MHz
Number of displays supported (on-board graphics)	3

Specification	Value
Type	NAS
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Number of users	8192 user(s)
Noise level	30 dB
Management protocols	SNMP
Access Control List (ACL)	Yes
Security algorithms	256-bit AES, SSH, SSL/TLS
Mean time between failures (MTBF)	159519 h

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012

Specification	Value
Power supply unit (PSU) capacity	550 W
Redundant power supply (RPS) support	Yes
Power consumption (typical)	163 W
AC input voltage	100-230 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Compliance certificates	RoHS
Digital Living Network Alliance (DLNA) certified	Yes
Certification	FCC A, CE A, VCCI A
Processor ARK ID	65733
