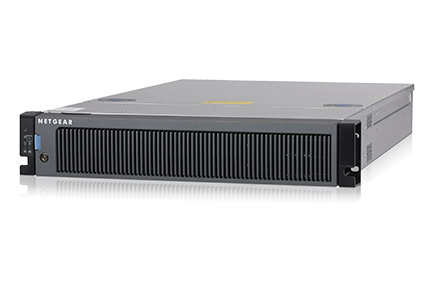

ReadyNAS 3312 2U 12-bay Diskless

Model ReadyNAS 3312 2U 12-bay DisklessPart no. RR331200-20000SEAN 606449142464

127 specifications

Overview

Brand: NETGEAR
Category: NAS & Storage Servers
Model: ReadyNAS 3312 2U 12-bay Diskless
Part number: RR331200-20000S
EAN / UPC: 606449142464
Also known as: NETGEAR ReadyNAS 3312 2U 12-bay Diskless NAS Rack (2U) Intel® Xeon® E3 v5 E3-1225V5 8 GB DDR4 Black

127 specifications in 13 groups

Specification	Value
Number of storage drives supported	12
Supported storage drive types	SSD
Supported storage drive interfaces	Serial ATA
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 v5
Processor model	E3-1225V5
Processor frequency	3.3 GHz
Processor boost frequency	3.7 GHz
Processor cores	4
Processor threads	4
Processor cache	8 MB
Bus type	DMI3
CPU configuration (max)	1
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v5
Processor socket	LGA 1151 (Socket H4)
Scalability	1S
System bus rate	8 GT/s
Thermal Design Power (TDP)	80 W
On-board graphics card model	Intel® HD Graphics P530
Maximum internal memory supported by processor	64 GB
Memory bandwidth supported by processor (max)	34.1 GB/s
Conflict-Free processor	Yes

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Link aggregation	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
eSATA ports quantity	2
External mini-SAS ports	2

Specification	Value
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x191D
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Noise level	49 dB
Snapshot	Yes
Management protocols	SNMP
Web-based management	Yes
Browser supported	Microsoft Internet Explorer 9+, Microsoft Edge, Mozilla Firefox 14+, Google Chrome 50+, Apple Safari 5+
Built-in BitTorrent client	Yes
Built-in UPnP AV media server	Yes
Built-in iTunes server	Yes
S.M.A.R.T. support	Yes
System log	Yes
Universal Plug and Play (UPnP)	Yes

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	550 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Maximum number of PCI Express lanes	16
Thermal Monitoring Technologies	Yes
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
