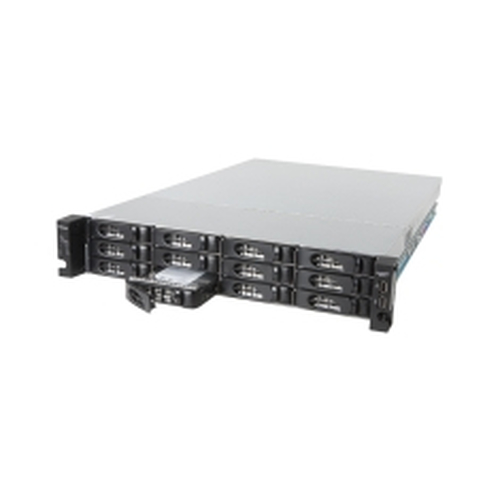

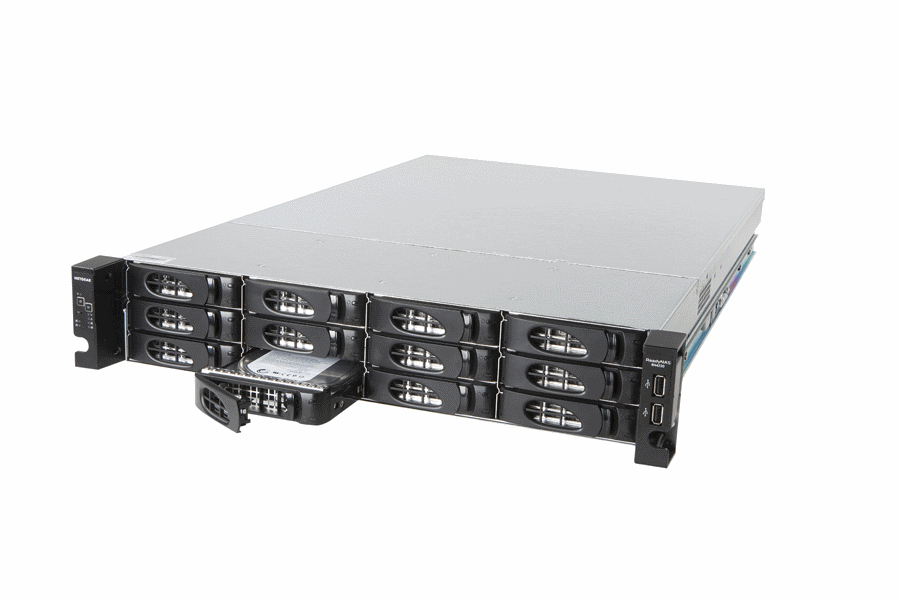

NETGEAR ReadyNAS 3220

Model ReadyNAS 3220Part no. RN3220-100NES + 12X ST4000NC000EAN 606449100891

117 specifications

Overview

Brand: NETGEAR
Category: NAS & Storage Servers
Model: ReadyNAS 3220
Part numbers: RN3220-100NES + 12X ST4000NC000, RN322124E-100NES, RN32262E-100NES, RN3220-100NES, RN322121E-100NES, RN322123E-100NES +4 more
EAN / UPC: 606449100891, 606449100440, 6064491004408, 044111228755 +11 more
Also known as: NETGEAR ReadyNAS 3220 Rack (2U) Intel® Core™ i3 i3-3220 4 GB 48 TB Black

117 specifications in 14 groups

Specification	Value
Total installed storage capacity	48 TB
Number of storage drives installed	12
Number of storage drives supported	12
Storage drive capacity	4 TB
Storage drive interface	Serial ATA
Storage drive size	2.5/3.5"
Maximum supported storage capacity	48 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	3rd gen Intel® Core™ i3
Processor model	i3-3220
Processor frequency	3.3 GHz
Processor cores	2
Processor threads	4
Processor cache	3 MB
L3 cache	3 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	33
ECC supported by processor	Yes
Number of processors installed	1
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Core i3-3200 Desktop Series
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Tcase	65.3 °C
Thermal Design Power (TDP)	55 W
On-board graphics card model	Intel® HD Graphics 2500
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	Yes

Specification	Value
Internal memory	4 GB

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
iSCSI support	Yes
Compliance industry standards	IEEE 802.3ad
Cabling technology	10/100/1000Base-T(X)
Supported network protocols	TCP/IP, IPv4, IPv6, NTP, HTTP, HTTPS, SFTP, CIFS/SMB 3, UPnP

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
eSATA ports quantity	2
eSATA	Yes

Specification	Value
On-board graphics card ID	0x152
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3

Specification	Value
Number of users	8192 user(s)
Noise level	30 dB
Management protocols	SMB
Access Control List (ACL)	Yes
Security algorithms	256-bit AES, SSH, SSL/TLS
Mean time between failures (MTBF)	159519 h

Specification	Value
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012

Specification	Value
Power supply unit (PSU) capacity	550 W
Redundant power supply (RPS) support	Yes
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
