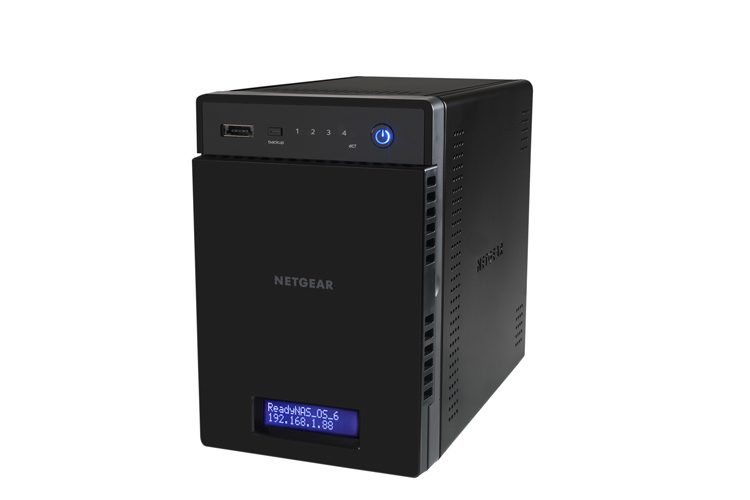

NETGEAR ReadyNAS 314 + WD20EFRX

Model ReadyNAS 314 + WD20EFRXPart no. RN31400-100EUS+WD20EFRX

74 specifications

Overview

Brand: NETGEAR
Category: NAS & Storage Servers
Model: ReadyNAS 314 + WD20EFRX
Part number: RN31400-100EUS+WD20EFRX
Also known as: NETGEAR ReadyNAS 314 + WD20EFRX NAS Desktop Intel Atom® 2 GB 2 TB HDD ReadyNAS OS Black

74 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	2 TB
Number of storage drives installed	1
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA
Storage drive size	2.5/3.5"
Maximum supported storage capacity	16 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Internal memory	2 GB
Flash memory	128 MB

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	TCP/IP, IPv4, IPv6, VLAN, SSH, SNMP, NTP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
eSATA ports quantity	1
HDMI ports quantity	1

Specification	Value
Operating system installed	ReadyNAS OS
Operating system version	6
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2

Specification	Value
Power supply location	External
Power supply unit (PSU) capacity	90 W
Number of power supply units	1
Power consumption (typical)	49 W
Power consumption (sleep)	0.843 W
Power consumption (off)	0.472 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
External power adapter	Yes

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Compliance certificates	RoHS
Certification	FCC, CE, VCCI
