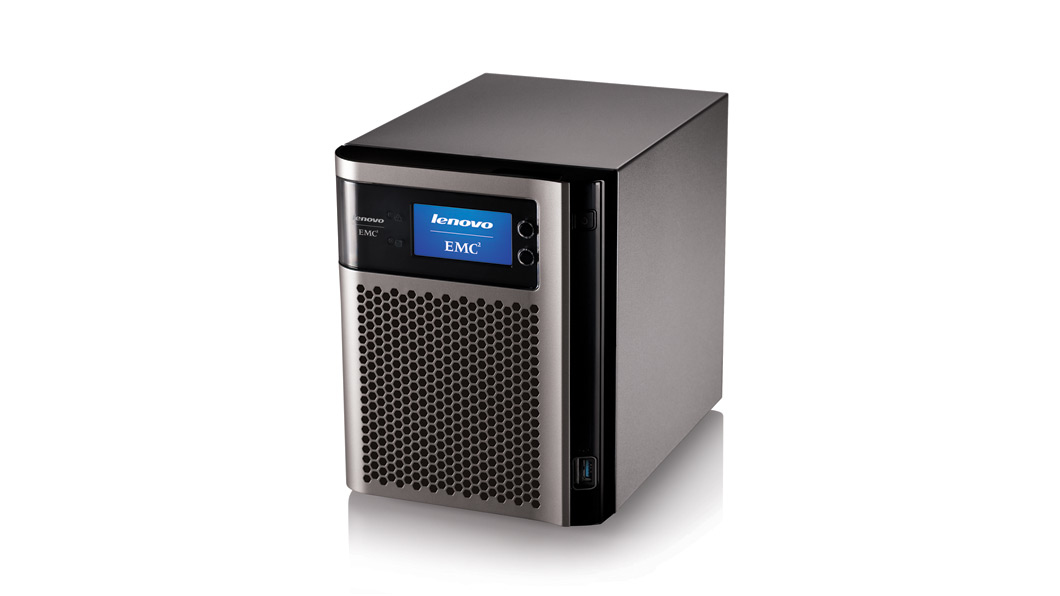

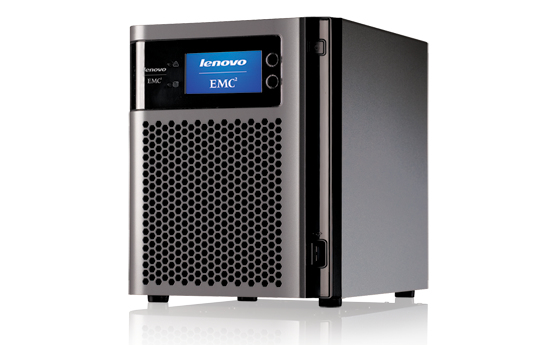

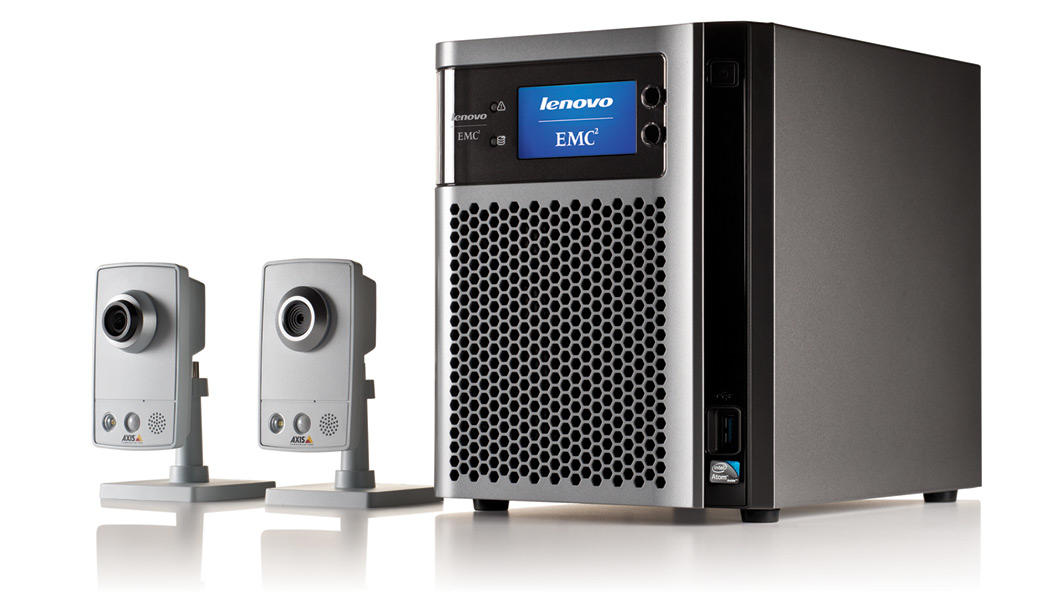

Lenovo TotalStorage Series x4-300d Storage server Desktop Intel Atom® D525

2 GB DDR3 4 TB HDD Black

Model x4-300dPart no. 70A79003LA

91 specifications

Overview

Brand: Lenovo
Category: NAS & Storage Servers
Model: x4-300d
Part number: 70A79003LA
Also known as: Lenovo TotalStorage Series x4-300d Storage server Desktop Intel Atom® D525 2 GB DDR3 4 TB HDD Black

91 specifications in 12 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	4 TB
Number of storage drives installed	2
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA II
Storage drive size	3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	12 TB
RAID support	Yes
RAID levels	0, 1, 5, 10, JBOD
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Supported network protocols	CIFS/SMB/Rally, NFS (Linux/ UNIX), AFP/Bonjour (Apple), FTP, SFTP, TFTP, HTTP, HTTPS, WebDAV, Windows DFS, SNMP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Fiber ports quantity	0

Specification	Value
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	8 - 85%
Non-operating altitude	0 - 12192 m
Operating altitude	0 - 2286 m
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 60 °C

Specification	Value
Processor ARK ID	49490
