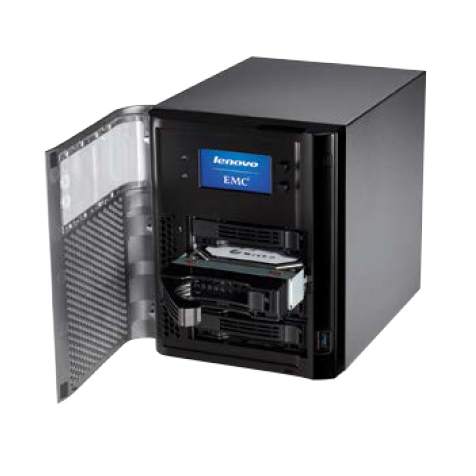

Lenovo px4-300d 4TB

Model px4-300d 4TBPart no. 70BC9016EAEAN 887942318987

88 specifications

Overview

Brand: Lenovo
Category: NAS & Storage Servers
Model: px4-300d 4TB
Part number: 70BC9016EA
EAN / UPC: 887942318987
Also known as: Lenovo EMC px4-300d 4TB NAS Desktop Intel Atom® D525 2 GB DDR3 HDD Black, Silver

88 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	4 TB
Number of storage drives installed	2
Number of storage drives supported	2
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA II
Storage drive size	3.5"
Maximum supported storage capacity	4 TB
RAID support	Yes
RAID levels	0, 1, 5, 10
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Fiber ports quantity	0

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Power supply unit (PSU) capacity	55 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	8 - 85%
Storage temperature (T-T)	-40 - 60 °C

Specification	Value
Processor ARK ID	49490
