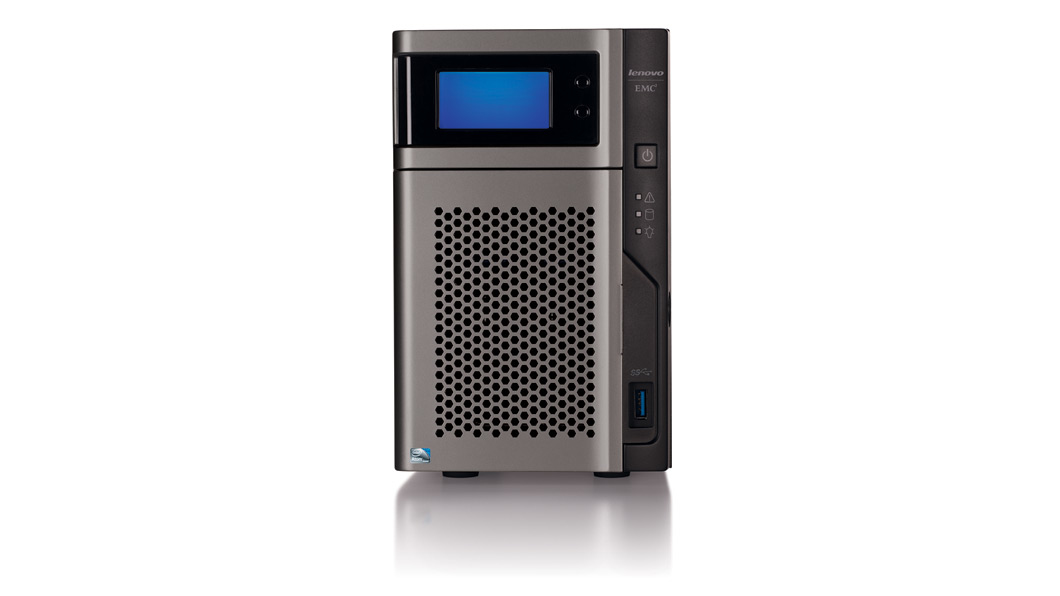

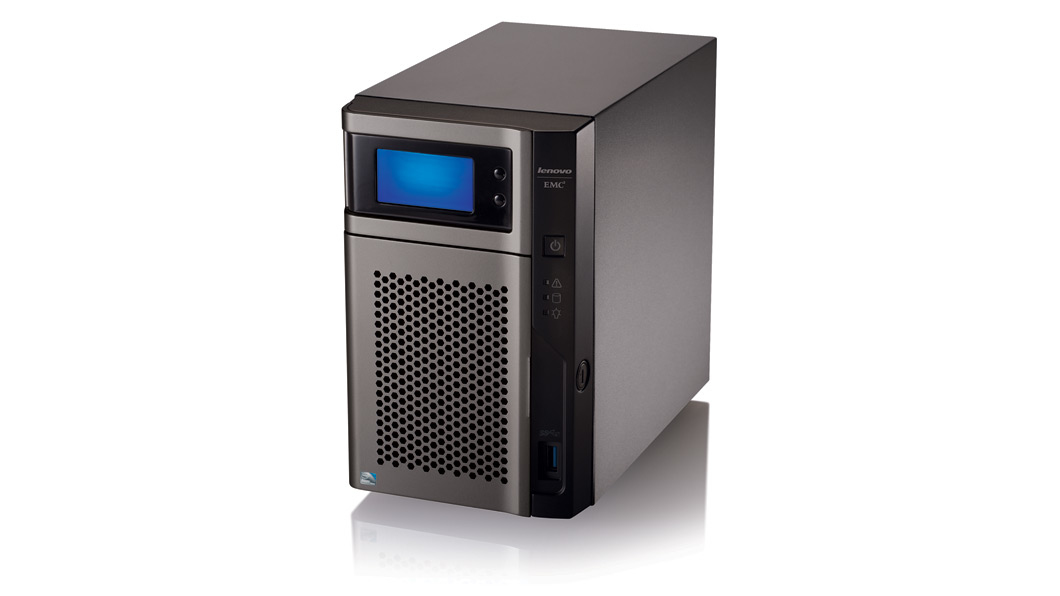

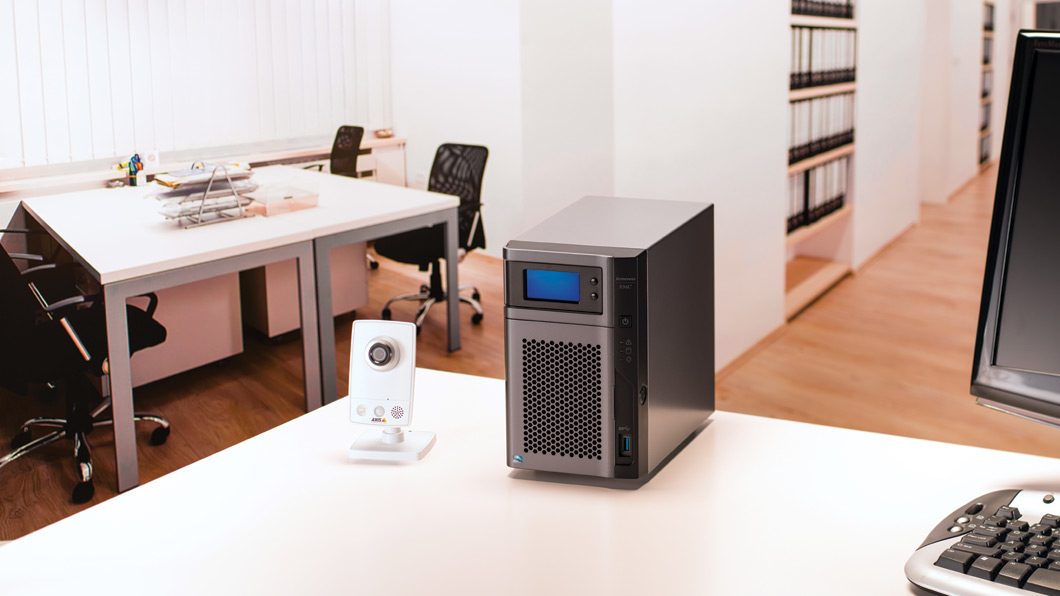

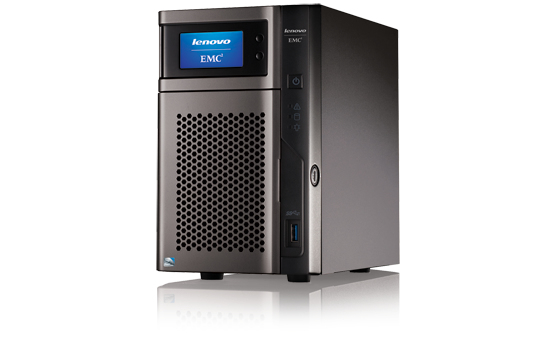

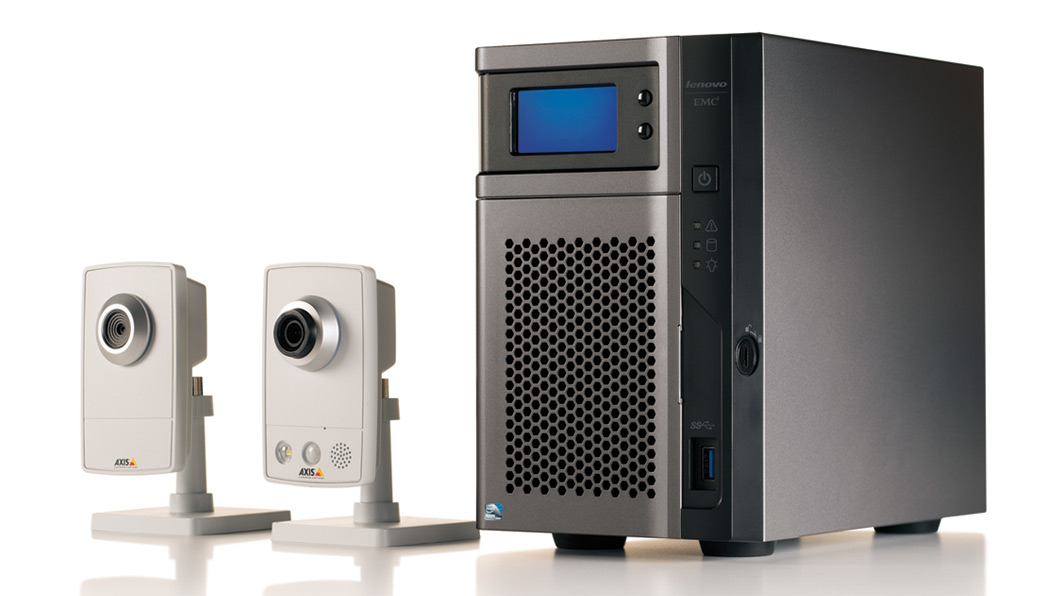

Lenovo EMC px2-300d NAS Desktop Intel Atom® D525

2 GB DDR3 8 TB HDD Black

Model px2-300dPart no. 70BA9004EA + 2X WD20EFRXEAN 887770963717

94 specifications

Overview

Brand: Lenovo
Category: NAS & Storage Servers
Model: px2-300d
Part numbers: 70BA9004EA + 2X WD20EFRX, 70BA9004EA + 2X WD30EFRX, 70BA9004EA/KIT, 70BA9004EA+WD4000F9YZ, 70BA9004EA+WD3000F9YZ, 70BA9004EA+WD2000F9YZ +14 more
EAN / UPC: 887770963717
Also known as: Lenovo EMC px2-300d NAS Desktop Intel Atom® D525 2 GB DDR3 8 TB HDD Black

94 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	8 TB
Number of storage drives supported	2
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA II
Storage drive size	3.5"
RAID support	Yes
RAID levels	1
Hot-swap drive bays	Yes
Supported file systems	ext2, ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS/SMB/Rally(Microsoft), NFS (Linux/UNIX), AFP/Bonjour (Apple), FTP,SFTP, TFTP, HTTP, HTTPS, WebDAV, Windows DFS, SNMP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Fiber ports quantity	0
VGA (D-Sub) ports quantity	1

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	8 - 85%
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 60 °C

Specification	Value
Processor ARK ID	49490
