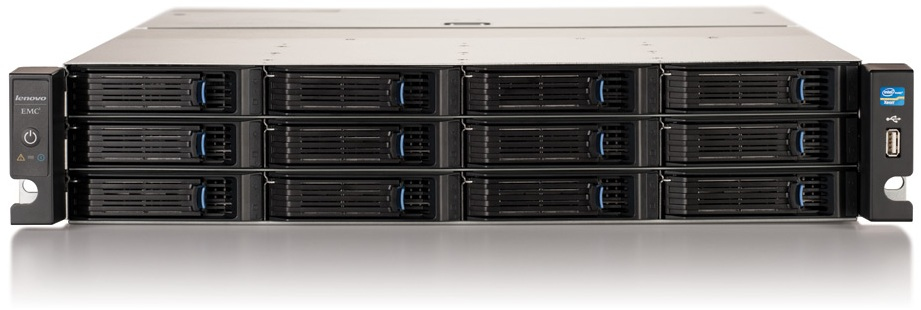

Lenovo EMC PX12-450R

Lenovo EMC PX12-450R

Model EMC PX12-450RPart no. 70BR9008EAEAN 888228173320

101 specifications
  • ProcessorIntel® Xeon® E3 V2 Family
  • Memory8 TB
  • Noise48.5 dB
  • TypeStorage server
  • ColourBlack, Grey
  • Storage drives installedNo
See all specifications

Overview

Processor
Intel® Xeon® E3 V2 Family
Memory
8 TB
Noise
48.5 dB
Type
Storage server
Colour
Black, Grey
Storage drives installed
No
Brand
Lenovo
Model
EMC PX12-450R
Part number
70BR9008EA
EAN / UPC
888228173320
Also known as
Lenovo TotalStorage Series EMC PX12-450R Storage server Rack (2U) Intel® Xeon® E3 V2 Family E3-1265LV2 8 TB DDR3 0 TB Black, Grey

Specifications

101 specifications in 13 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported12
Supported storage drive typesHDD
Storage drive capacity0 GB
Storage drive interfaceSerial ATA, Serial ATA II
Storage drive size3.5"
Maximum supported storage capacity48 TB
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD
Hot-swap drive baysNo

Processor

Processor manufacturerIntel
Processor familyIntel® Xeon® E3 V2 Family
Processor modelE3-1265LV2
Processor frequency2.5 GHz
Processor boost frequency3.5 GHz
Processor cores4
Processor threads8
Processor cache8 MB
L3 cache8 MB
Bus typeDMI
ECC supported by processorYes
PCI Express configurations1x16+1x4, 1x8+3x4, 2x8+1x4
PCI Express slots version3.0
Processor cache typeSmart Cache
Processor codeSR0PB
Processor codenameIvy Bridge
Processor lithography-, 22
Processor operating modes64-bit
Processor socketLGA 1155 (Socket H2)
SteppingE1
System bus rate5 GT/s
Thermal Design Power (TDP)45 W
On-board graphics card modelIntel® HD Graphics P4000
Maximum internal memory supported by processor32 GB
Conflict-Free processorNo

Memory

Internal memory8 TB
Internal memory typeDDR3

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
Wake-on-LAN readyYes
Supported network protocolsCIFS/SMB/Rally, NFS, AFP Bonjour, FTP, SFTP, TFTP, HTTP, HTTPS, WebDAV, Windows DFS, SNMP

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Fiber ports quantity0

Graphics

On-board graphics card base frequency650 MHz
On-board graphics card dynamic frequency (max)1150 MHz
Number of displays supported (on-board graphics)3

Design

Chassis typeRack (2U)
Product colourBlack, Grey
Built-in displayNo

Performance

TypeStorage server
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud, iSCSI LUN
Number of users375 user(s)
Noise level48.5 dB

Software

Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion

Power

Power consumption (typical)190 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Identity Protection Technology version1.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® Quick Sync Video TechnologyYes
Intel® Smart CacheYes
Intel® Turbo Boost Technology2.0
Memory channels supported by processorDual
Memory types supported by processorDDR3-SDRAM

Operational conditions

Operating temperature (T-T)10 - 35 °C
Operating relative humidity (H-H)8 - 85%
Non-operating altitude0 - 12192 m
Operating altitude0 - 2286 m
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 60 °C

Other features

Processor ARK ID65728
