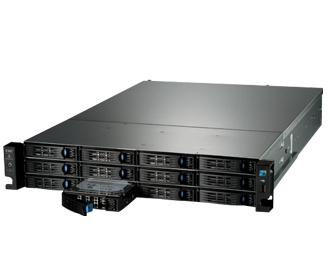

Iomega StorCenter ix12-300r/4TB

Model StorCenter ix12-300r/4TBPart no. 34656EAN 742709346569

68 specifications

Overview

Brand: Iomega
Category: NAS & Storage Servers
Model: StorCenter ix12-300r/4TB
Part number: 34656
EAN / UPC: 742709346569, 4019976346568
Also known as: Iomega StorCenter ix12-300r/4TB Rack (2U) Intel® Core™2 Duo E8400 2 GB 4.096 TB EMC LifeLine

68 specifications in 11 groups

Specification	Value
Total installed storage capacity	4.096 TB
Number of storage drives supported	12
Storage drive interface	Serial ATA II
Storage drive size	3.5"
Maximum supported storage capacity	24 TB
RAID levels	0, 1, 5, 6, 10

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E8400
Processor frequency	3 GHz
Processor cores	2
Processor threads	2
Processor cache	6 MB
Bus type	FSB
CPU multiplier (bus/core ratio)	9
FSB Parity	No
Processing Die size	107 mm²
Processor cache type	L2
Processor code	SLB9J
Processor codename	Wolfdale
Processor front side bus	1333 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 775 (Socket T)
Stepping	E0
Tcase	72.4 °C
Thermal Design Power (TDP)	65 W
On-board graphics card model	Not available
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB

Specification	Value
iSCSI support	Yes
Compliance industry standards	IEEE 802.3, IEEE 802.3u
Supported network protocols	Microsoft (CIFS/SMB/Rally) FTP, Linux/UNIX (NFS) HTTP, Apple AFP/Bonjour @SNMP, Windows DFS WebDAV, VLAN tagging

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	3

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Operating system installed	EMC LifeLine
Bundled software	Iomega StorCenter Manager

Specification	Value
Power consumption (typical)	200 W

Specification	Value
Weight	19.5 kg

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	410 M
Thermal Monitoring Technologies	Yes

Specification	Value
Compatible operating systems	Microsoft Windows Server, XP Home/XP Professional/XP Professional x64, Vista Home Basic/Home Premium/Business/Ultimate, 7 Home/Home Premium/Pro, Server 2003, Server 2008; Mac OS X 10.3 +; Ubuntu 7.10, Fedora 8, Fedora 7, Fedora Core 6/5, Red Hat Enterprise Linux 5 Desktop/Workstation, Red Hat Enterp
Dimensions (WxDxH)	660 x 430 x 88 mm
Minimum RAM	256 MB
Minimum processor	300 MHz
Minimum system requirements	CD/DVD; Microsoft Internet Explorer 6.0 / Firefox 1.5 / Netscape 8.0 / Apple Safari 2.0
Networking features	Gigabit Ethernet
Power consumption (standby)	110 W
Power requirements	100 - 240 VAC, 50 - 60 Hz
Certification	Microsoft Exchange Server 2010 - ESRP; Windows Server 2003, Windows Server 2008, Windows Server 2008 R2; VMware vSphere ESX4 (iSCSI & NAS); Citrix XenServer 5.5 (iSCSI & NFS).
Processor ARK ID	33910
Technical features	RSA BSAFE
