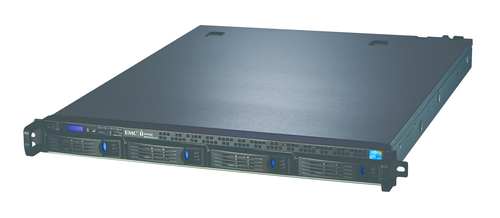

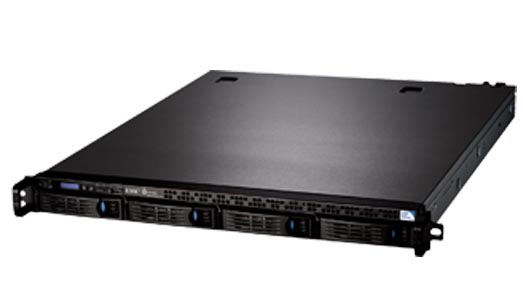

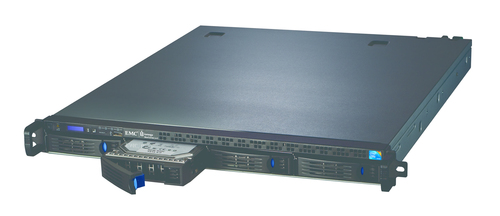

Iomega PX4-300R NSA 12TB Server Class

Model PX4-300R NSA 12TB Server ClassPart no. 35947

71 specifications

Overview

Brand: Iomega
Category: NAS & Storage Servers
Model: PX4-300R NSA 12TB Server Class
Part number: 35947
Also known as: Iomega StorCenter PX4-300R NSA 12TB Server Class Rack (1U) Intel® Celeron® E1500 2 GB EMC LifeLine Black

71 specifications in 13 groups

Specification	Value
Total installed storage capacity	12 TB
Number of storage drives installed	4
Number of storage drives supported	4
Storage drive capacity	3 TB
Storage drive interface	Serial ATA II
Storage drive size	3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	12 TB
RAID levels	1, 5, 5+1, 10, JBOD
Supported file systems	ext2, ext3, FAT32, HFS+, NTFS
Average latency	4.17 ms

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	E1500
Processor frequency	2.2 GHz
Processor cores	2
Processor threads	2
Processor cache	0.512 MB
L2 cache	0.5 MB
Bus type	FSB
CPU multiplier (bus/core ratio)	11
FSB Parity	No
Number of processors installed	1
Processing Die size	77 mm²
Processor cache type	L2
Processor codename	Conroe
Processor front side bus	800 MHz
Processor lithography	65 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 775 (Socket T)
Tcase	73.3 °C
Thermal Design Power (TDP)	65 W

Specification	Value
Internal memory	2 GB

Specification	Value
iSCSI support	Yes
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, TFTP, HTTP, HTTPS, WebDAV, DFS, SNMP, CIFS/SMB/Rally, NFS, AFP/Bonjour

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	3

Specification	Value
Chassis type	Rack (1U)
Product colour	Black

Specification	Value
Operating system installed	EMC LifeLine

Specification	Value
Power consumption (typical)	170 W

Specification	Value
Weight	15 kg

Specification	Value
Cables included	LAN (RJ-45)

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	105 M
Thermal Monitoring Technologies	Yes

Specification	Value
Compatible operating systems	Windows XP Home Windows XP Professional 32/64-bit Windows Server 2003 Windows Server 2008 Windows Server 2008 R2 Mac OS X 10.4+ Redhat Enterprise 4-6 Ubuntu 7.10 - 10.10 OpenSUSE 10.3 - 11.3 Citrix XenServer
Dimensions (WxDxH)	430 x 510 x 43.6 mm
Minimum processor	Pentium 300Mhz
Minimum system requirements	IE 7.0+ Firefox 3.x+ Safari 3.0+
Networking features	Gigabit Ethernet
Power requirements	100 - 240V
Processor ARK ID	35100
