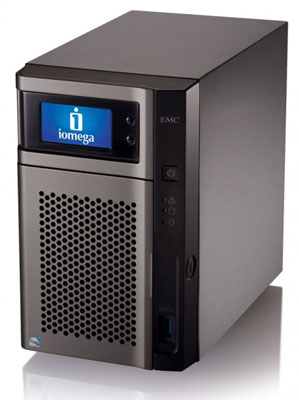

Iomega px2-300d 6TB

Model px2-300d 6TBPart no. 36063EAN 4019976360632

99 specifications

Overview

Brand: Iomega
Category: NAS & Storage Servers
Model: px2-300d 6TB
Part numbers: 36063, 36155
EAN / UPC: 4019976360632, 4019976361554
Also known as: Iomega StorCenter px2-300d 6TB Desktop Intel Atom® D525 2 GB DDR3 Black

99 specifications in 12 groups

Specification	Value
Total installed storage capacity	6 TB
Number of storage drives installed	2
Number of storage drives supported	2
Storage drive capacity	3 TB
Storage drive interface	Serial ATA II
Storage drive size	2.5/3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	6 TB
RAID levels	0, 1, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext2, ext3, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
Compatible processor series	Intel Atom®
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Compliance industry standards	IEEE 802.3, IEEE 802.3u
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	CIFS/SMB/Rally (Microsoft), NFS (Linux/UNIX), AFP/Bonjour (Apple), FTP, SFTP, TFTP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
Multilingual support	Yes
Number of users	256 user(s)
Noise level	33 dB
Web-based management	Yes
On/off switch	Yes
Reset button	Yes
Mean time between failures (MTBF)	1200000 h

Specification	Value
Number of power supply units	1

Specification	Value
External power adapter	Yes
Cables included	LAN (RJ-45)

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Compatible operating systems	Windows XP Mac OS X 10.5 - 10.7 Linux Redhat 9 Linux Enterprise 4/5 Linux Ubunta 7.10 - 10.10 Linux FedoraCore 7/8 Linux Fendora Core 5/6 Linux Debian 4 Linux OpenSUSE 10.3
Compliance certificates	RoHS
Fan	Yes
Link/Act LED	Yes
Minimum processor	Intel Pentium 300MHz
Minimum system requirements	IE 7.0 Firefox 3.x Safari 4 Chrome 6
Networking features	Gigabit Ethernet
Power LED	Yes
Power requirements	AC: 100-240V, DC: 19V/3.42A
Certification	FCC
Processor ARK ID	49490
