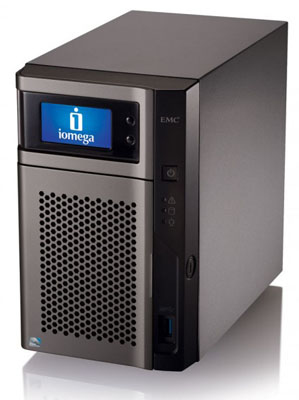

Iomega px2-300d 0TB

Model px2-300d 0TBPart no. 36071EAN 4019976360717

92 specifications

Overview

Brand: Iomega
Category: NAS & Storage Servers
Model: px2-300d 0TB
Part number: 36071
EAN / UPC: 4019976360717
Also known as: Iomega StorCenter px2-300d 0TB Desktop Intel Atom® D525 2 GB DDR3 Black

92 specifications in 13 groups

Specification	Value
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	2
Storage drive interface	Serial ATA II
Storage drive size	2.5/3.5"
Maximum supported storage capacity	6 TB
RAID levels	0, 1, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext2, ext3, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
Bus type	DMI
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Compliance industry standards	IEEE 802.3, IEEE 802.3u
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	CIFS/SMB/Rally (Microsoft), NFS (Linux/UNIX), AFP/Bonjour (Apple), FTP, SFTP, TFTP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1

Specification	Value
Multilingual support	Yes
Number of users	256 user(s)
Noise level	29 dB
Web-based management	Yes
On/off switch	Yes
Security algorithms	802.1x RADIUS
Mean time between failures (MTBF)	1200000 h

Specification	Value
External power adapter	Yes
Cables included	LAN (RJ-45)

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	8 - 85%
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C

Specification	Value
Compatible operating systems	Windows XP Home SP3/ XP Professional SP3 Windows Vista Home Basic / Home Premium / Ultimate Windows 7 Home Premium / Professional / Ultimate Windows Server 2008 Enterprise R2 Windows Server 2003 Small Business Server R2 Mac OS X 10.5 - Leopard Mac OS X 10.6 - Snow Leopard Mac OS X 10.7 - Lion Mac OS
Minimum system requirements	10/100/1000 Mbps Internet Explorer 7, Firefox 3, Chrome 9, Safari 4
Power requirements	100 - 240 V AC, 50/60 Hz
Certification	VMware vSphere 5.0, iSCSI Windows Server 2003 & Windows Server 2008, & 2008R including Microsoft Cluster Server and Hyper-V Live Migration Citrix XenServer 5.6 (w/ MPIO), iSCSI & NFS
Processor ARK ID	49490
