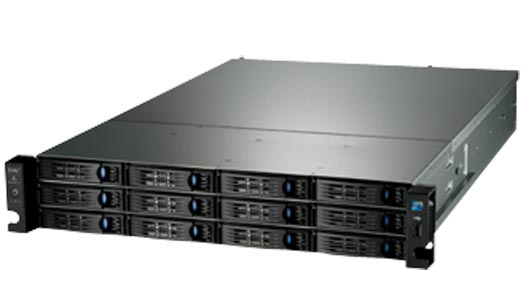

Iomega px12-350r 3TB

Model px12-350r 3TBPart no. 36100EAN 742709361005

94 specifications

Overview

Brand: Iomega
Category: NAS & Storage Servers
Model: px12-350r 3TB
Part number: 36100
EAN / UPC: 742709361005, 4019976361004
Also known as: Iomega StorCenter px12-350r 3TB Rack (2U) Intel® Core™2 Duo E8400 4 GB DDR2 Black

94 specifications in 13 groups

Specification	Value
Total installed storage capacity	3 TB
Number of storage drives installed	1
Number of storage drives supported	12
Storage drive capacity	3 TB
Storage drive interface	Serial ATA II
Storage drive size	3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	36 TB
RAID levels	0, 1, 5, 6, 10, JBOD
Supported file systems	ext2, ext3, FAT32, HFS+, NTFS
Average latency	4.17 ms

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E8400
Processor frequency	3 GHz
Processor cores	2
Processor threads	2
Processor cache	6 MB
L2 cache	6 MB
Bus type	FSB
CPU multiplier (bus/core ratio)	9
Compatible processor series	Intel® Core™2 Duo
FSB Parity	No
Number of processors installed	1
Processing Die size	107 mm²
Processor cache type	L2
Processor code	SLB9J
Processor codename	Wolfdale
Processor front side bus	1333 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 775 (Socket T)
Stepping	E0
Tcase	72.4 °C
Thermal Design Power (TDP)	65 W
On-board graphics card model	Not available
Conflict-Free processor	No

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	CIFS/SMB/Rally (Microsoft), NFS (Linux/UNIX), AFP/Bonjour (Apple), FTP, TFTP, HTTP, HTTPS, WebDAV, Windows DFS

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	3

Specification	Value
Chassis type	Rack (2U)
Product colour	Black

Specification	Value
Multilingual support	Yes
Noise level	56 dB
Management protocols	SNMP
Mean time between failures (MTBF)	1200000 h

Specification	Value
Power consumption (typical)	200 W

Specification	Value
Cables included	LAN (RJ-45)

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	410 M
Thermal Monitoring Technologies	Yes

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	8 - 85%
Non-operating altitude	0 - 12192 m
Operating altitude	0 - 2286 m
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 60 °C

Specification	Value
Compatible operating systems	Windows Server Windows XP Home Windows XP Professional Windows XP Professional x64 Windows Server 2003 Windows Server 2008 Windows Server 2008 R2 Mac OS X 10.4+ Redhat Enterprise 4-6 Ubuntu 7.10 - 10.10 OpenSUSE 10.3 - 11.3 VMware vSphere 5.0 Citrix XenServer
Compliance certificates	RoHS
Fan	Yes
Minimum processor	Intel Pentium 300MHz
Minimum system requirements	IE 7.0+ Firefox 3.x+ Netscape 8.0+ Safari 3+
Networking features	Gigabit Ethernet
Power requirements	AC: 100-240V, DC: 19V/3.42A
Certification	FCC, CE
Processor ARK ID	33910
