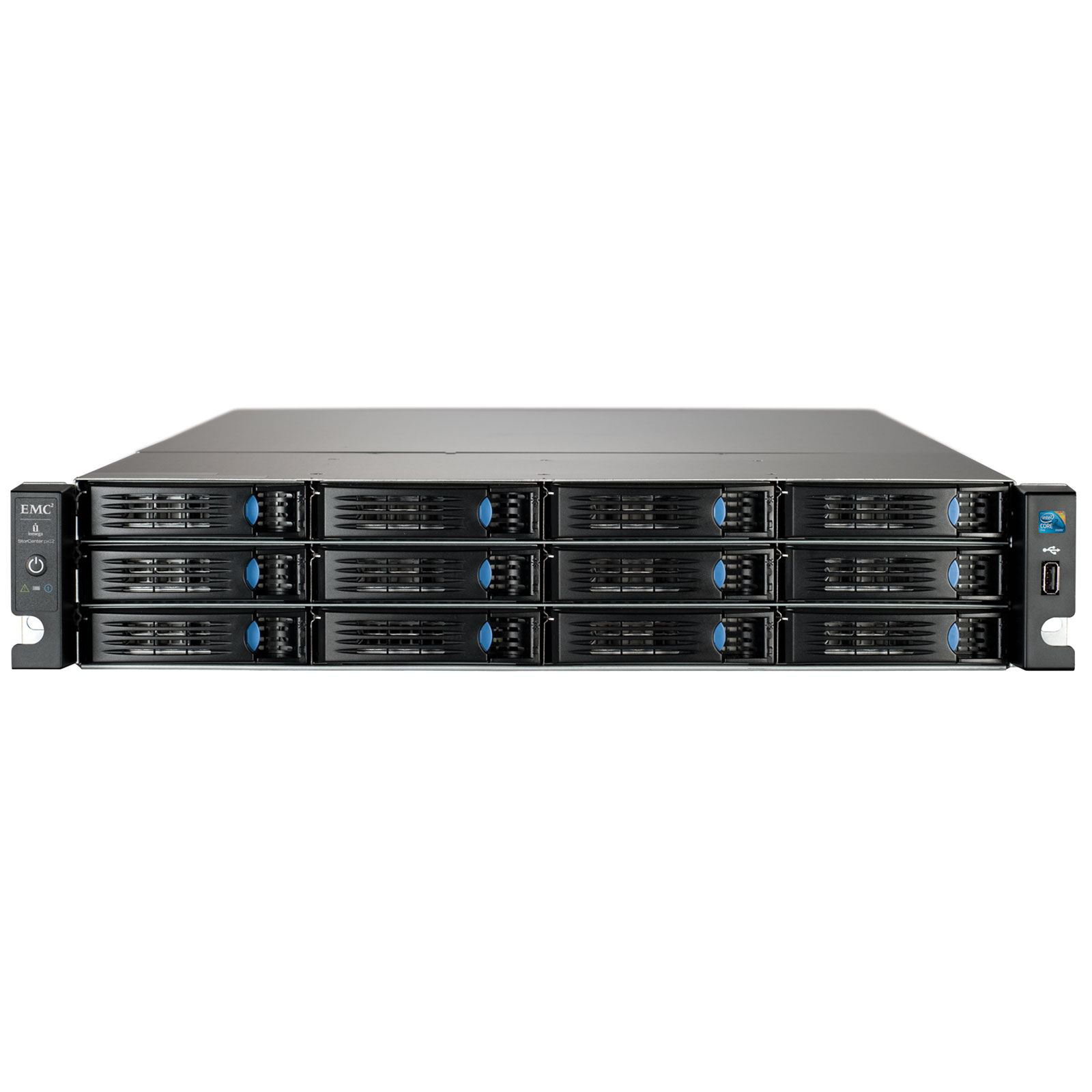

Iomega px12-350r / 24TB (12 x 2TB), Gigabit Ethernet

Model px12-350r / 24TB (12 x 2TB), Gigabit EthernetPart no. 36049EAN 742709360497

90 specifications

Overview

Brand: Iomega
Category: NAS & Storage Servers
Model: px12-350r / 24TB (12 x 2TB), Gigabit Ethernet
Part number: 36049
EAN / UPC: 742709360497, 4019976360496
Also known as: Iomega StorCenter px12-350r / 24TB (12 x 2TB), Gigabit Ethernet Rack (2U) Intel® Core™2 Duo E8400 4 GB DDR2 Black

90 specifications in 14 groups

Specification	Value
Total installed storage capacity	24 TB
Number of storage drives installed	12
Number of storage drives supported	12
Storage drive capacity	2 TB
Storage drive interface	Serial ATA, Serial ATA II
Storage drive size	3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	36000 TB
RAID levels	0, 1, 5, 6, 10
Supported file systems	ext2, ext3, FAT32, HFS+, NTFS
Average latency	4.17 ms

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E8400
Processor frequency	3 GHz
Processor cores	2
Processor threads	2
Processor cache	6 MB
Bus type	FSB
CPU multiplier (bus/core ratio)	9
FSB Parity	No
Number of processors installed	1
Processing Die size	107 mm²
Processor cache type	L2
Processor code	SLB9J
Processor codename	Wolfdale
Processor front side bus	1333 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 775 (Socket T)
Stepping	E0
Tcase	72.4 °C
Thermal Design Power (TDP)	65 W
On-board graphics card model	Not available
Conflict-Free processor	No

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2

Specification	Value
Wi-Fi	No
iSCSI support	Yes
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	CIFS/SMB/Rally (Microsoft), NFS (Linux/UNIX), AFP/Bonjour (Apple), FTP, TFTP, HTTP, HTTPS, WebDAV, Windows DFS, SNMP

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	3

Specification	Value
Multilingual support	Yes
Noise level	56 dB
On/off switch	Yes
Mean time between failures (MTBF)	1200000 h

Specification	Value
Bundled software	QuikProtect

Specification	Value
Power consumption (typical)	200 W
Power consumption (sleep)	110 W

Specification	Value
Weight	19.5 kg

Specification	Value
Cables included	AC, LAN (RJ-45)

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	410 M
Thermal Monitoring Technologies	Yes

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 90%
Non-operating altitude	0 - 12192 m
Operating altitude	0 - 2286 m
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

Specification	Value
Compatible operating systems	Microsoft Windows XP + Mac OS X 10.4 + Linux: Redhat Enterprise 4-6, Ubuntu 7.10 - 10.10, OpenSUSE 10.3 – 11.3
Compliance certificates	RoHS
Digital Living Network Alliance (DLNA) certified	Yes
Dimensions (WxDxH)	660 x 430 x 88 mm
Link/Act LED	Yes
Minimum system requirements	CD-ROM
Networking features	Gigabit Ethernet
Power LED	Yes
Power requirements	100-240 VAC, 50-60 Hz
Certification	DLNA, CE, FCC
Processor ARK ID	33910
