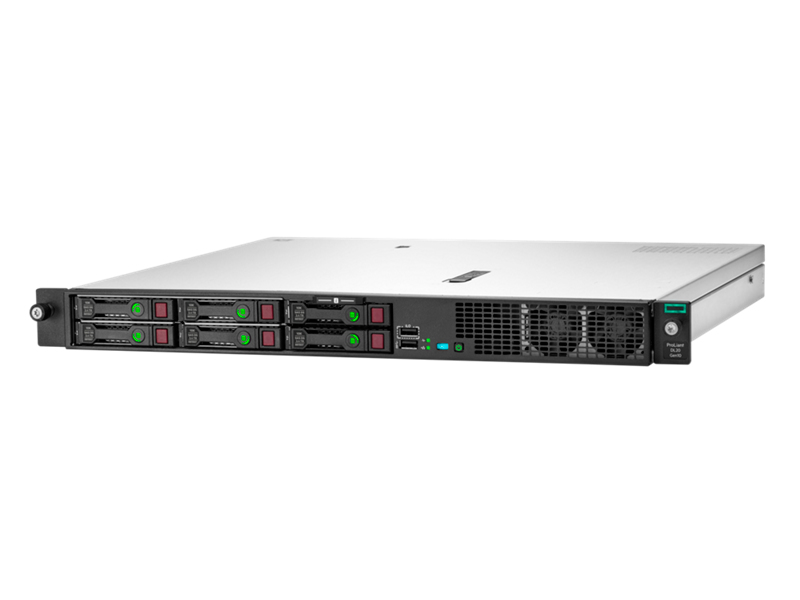

ProLiant DL20 Gen10
Model ProLiant DL20 Gen10Part no. P17080-B21
70 specifications
- ProcessorIntel® Xeon®
- Memory16 GB
- Noise29 dB
- TypeStorage server
- Weight9.46 kg
- ColourGrey
Overview
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Noise
- 29 dB
- Type
- Storage server
- Weight
- 9.46 kg
- Colour
- Grey
- Brand
- HP
- Category
- NAS & Storage Servers
- Model
- ProLiant DL20 Gen10
- Part number
- P17080-B21
- Also known as
- HP ProLiant DL20 Gen10 Storage server Rack (1U) Intel® Xeon® 16 GB DDR4 Grey
Specifications
70 specifications in 13 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 2 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 1.6 TB |
| Storage drive interface | Serial ATA |
| Supported storage drive interfaces | Serial ATA |
| Storage drive size | 2.5" |
| Storage drive sizes supported | 2.5,M.2 |
| Maximum supported storage capacity | 32 TB |
| RAID support | Yes |
| Hot-swap drive bays | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor frequency | 3.4 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 2666 MHz |
| Maximum RAM supported | 64 GB |
| ECC | Yes |
| Memory form factor | UDIMM |
| Memory slots | 4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| LAN controller | HP NC361i |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Fiber ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Grey |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Type | Storage server |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Noise level | 29 dB |
| Noise level (idle) | 21 dB |
| Web-based management | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Security algorithms | 3DES, AES, FIPS 140-2 |
| Universal Plug and Play (UPnP) | Yes |
Power
| Specification | Value |
|---|---|
| Power supply location | External |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434.6 mm |
| Depth | 382.2 mm |
| Height | 43.2 mm |
| Weight | 9.46 kg |
Packaging content
| Specification | Value |
|---|---|
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Non-operating altitude | 0 - 9144 m |
| Operating altitude | 0 - 3050 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
