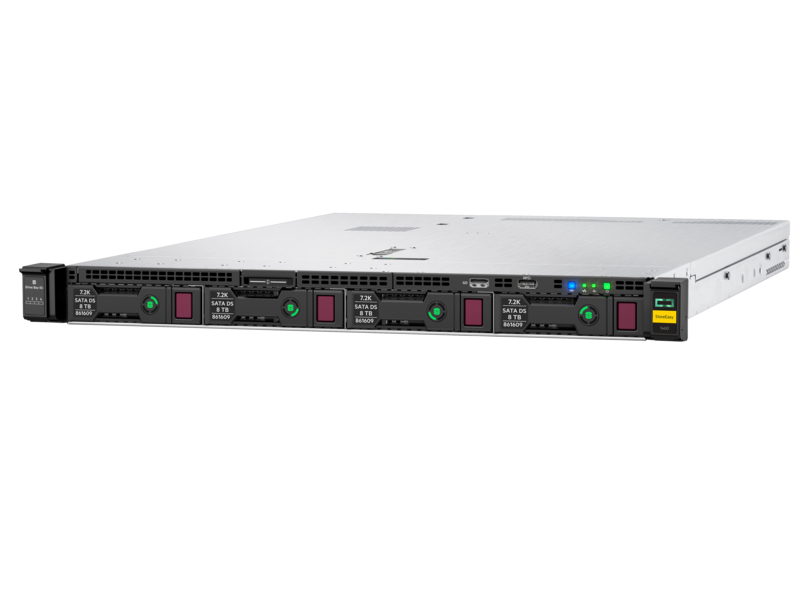

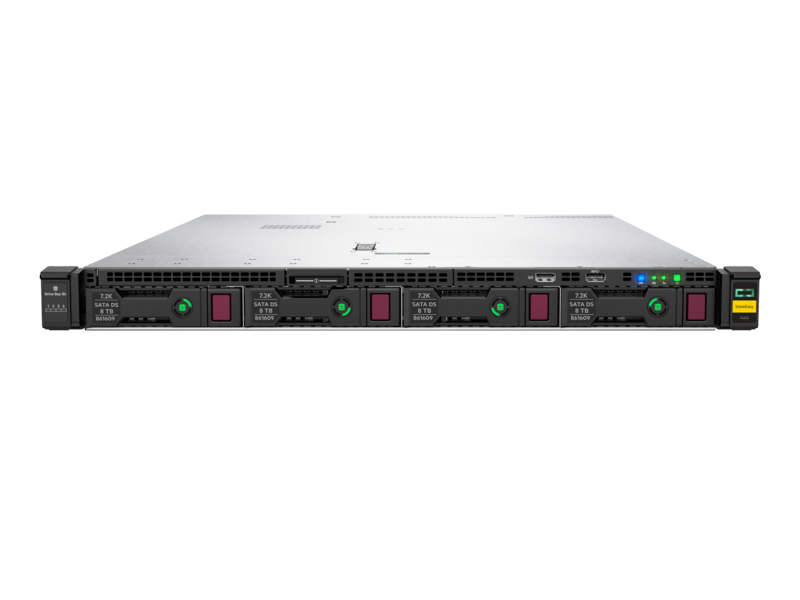

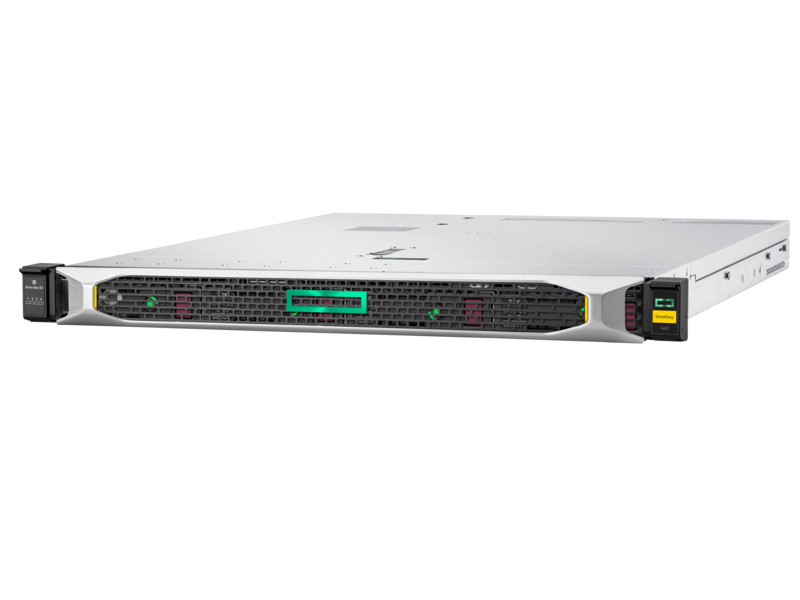

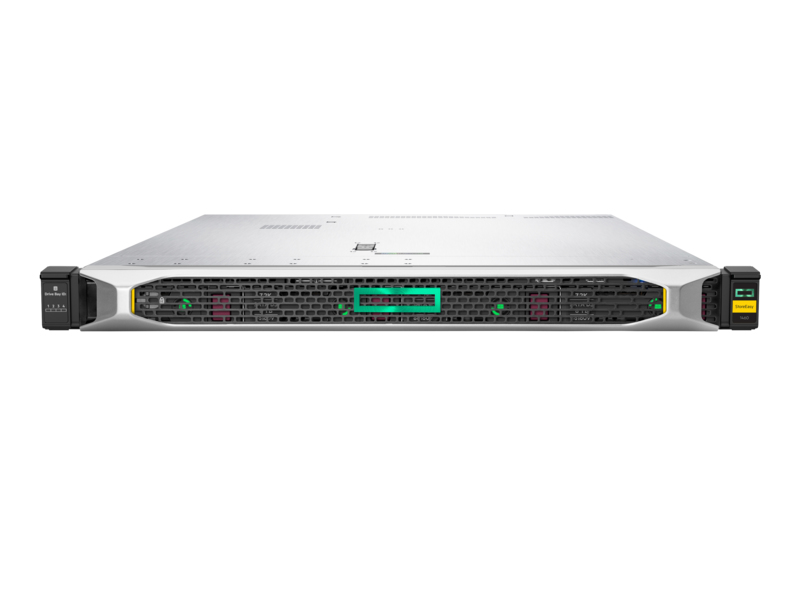

HP StoreEasy 1460 NAS Rack (1U) Intel® Xeon® 3104

8 GB DDR4 8 TB HDD Windows Storage Server 2016 Black, Silver

Model 1460Part no. Q2R92A

88 specifications

Overview

Brand: HP
Category: NAS & Storage Servers
Model: 1460
Part number: Q2R92A
Also known as: HP StoreEasy 1460 NAS Rack (1U) Intel® Xeon® 3104 8 GB DDR4 8 TB HDD Windows Storage Server 2016 Black, Silver

88 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	8 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA III
Storage drive size	3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	32 TB
RAID support	Yes
RAID levels	10 ADM, 0, 1, 1 ADM, 5, 10, 50, 60
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor generation	1st Generation Intel® Xeon® Scalable
Processor model	3104
Processor frequency	1.7 GHz
Processor cores	6
Processor threads	6
Processor cache	8.25 MB
L3 cache	8.25 MB
CPU configuration (max)	2
ECC supported by processor	Yes
PCI Express slots version	3.0
Processor cache type	L3
Processor code	SR3GM
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)
Scalability	2S
Stepping	U0
Tcase	78 °C
Thermal Design Power (TDP)	85 W
Maximum internal memory supported by processor	768 GB
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Supported network protocols	SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S

Specification	Value
Ethernet LAN (RJ-45) ports	4

Specification	Value
Type	NAS
Device class	Small & Medium Business

Specification	Value
Operating system installed	Windows Storage Server 2016

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	500 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	48
Memory channels supported by processor	Hexa
Memory types supported by processor	DDR4-SDRAM

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	8 - 90%
Non-operating altitude	0 - 9144 m
Operating altitude	0 - 3050 m
Storage relative humidity (H-H)	5 - 95%

Specification	Value
Processor ARK ID	123546
