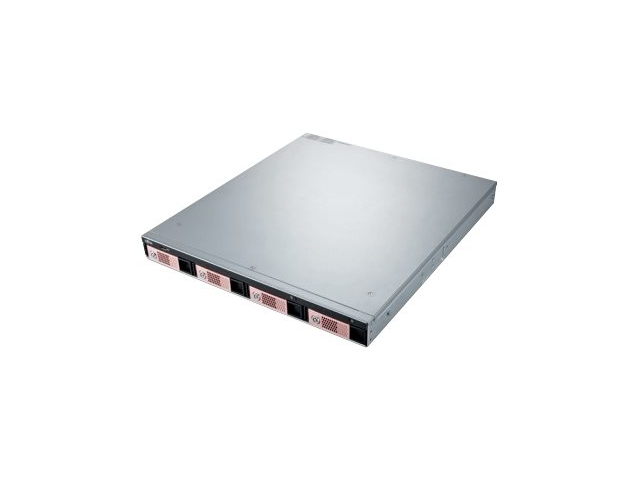

Fujitsu CELVIN NAS QR806 Rack (1U) AMD G GX-420MC

4 GB DDR3L 8 TB HDD Black, Silver

Model QR806Part no. S26341-F107-L848EAN 4057185828871

80 specifications

Overview

Brand: Fujitsu
Category: NAS & Storage Servers
Model: QR806
Part numbers: S26341-F107-L848, S26341-F107-L842, S26341-F107-L843, S26341-F107-L844, S26341-F107-L892, S26341-F107-L853 +6 more
EAN / UPC: 4057185828871, 5706998965974, 4057185651462, 4057185651509 +11 more
Also known as: Fujitsu CELVIN NAS QR806 Rack (1U) AMD G GX-420MC 4 GB DDR3L 8 TB HDD Black, Silver

80 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	8 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
Maximum supported storage capacity	24 TB
RAID support	Yes
RAID levels	0, 1, 5+HS, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Load balancing system	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0

Specification	Value
Type	NAS
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Multilingual support	Yes
Number of users	4096 user(s)
Noise level	36.4 dB
Browser supported	Internet Explorer 10+ / Edge / Mozilla Firefox 8+ / Apple Safari 4+ / Google Chrome
Built-in FTP server	Yes
Built-in Samba server	Yes
Disk scan	Yes
On/off switch	Yes
Password authentication	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, AES, FIPS 140-2, HTTPS, SSH, SSL/TLS

Specification	Value
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Linux operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Ma
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
Power consumption (typical)	65.62 W
Power consumption (sleep)	44.9 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85%

Specification	Value
Certification	Europe CE USA/Canada FCC Class A
