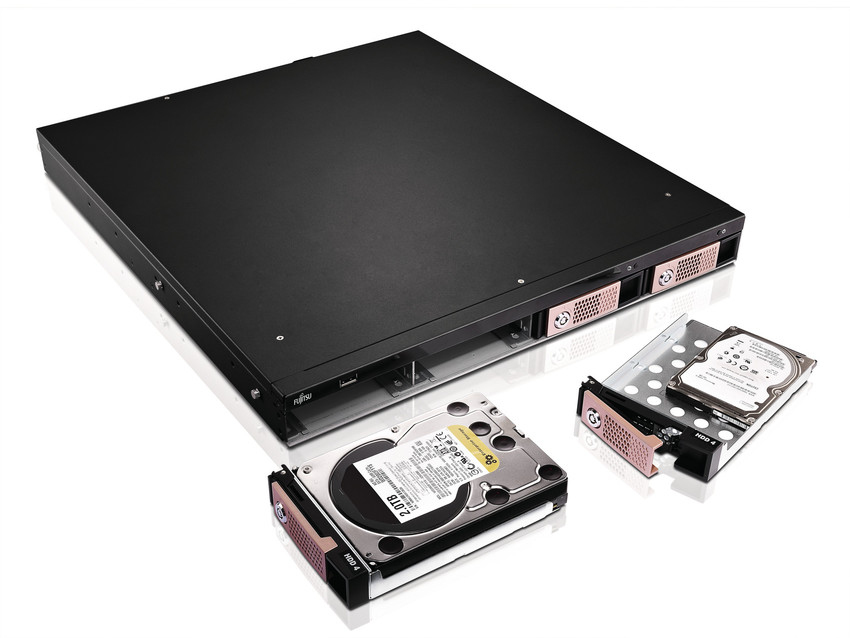

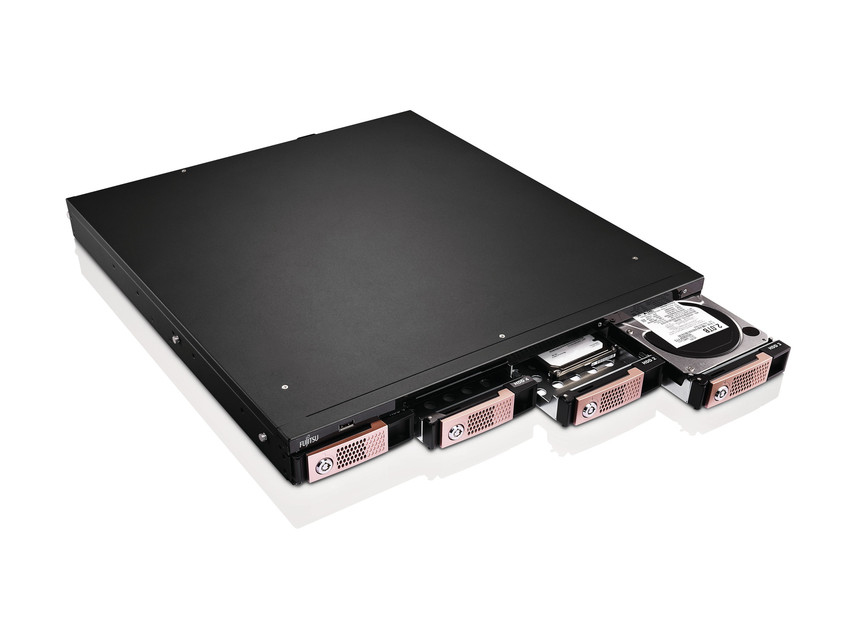

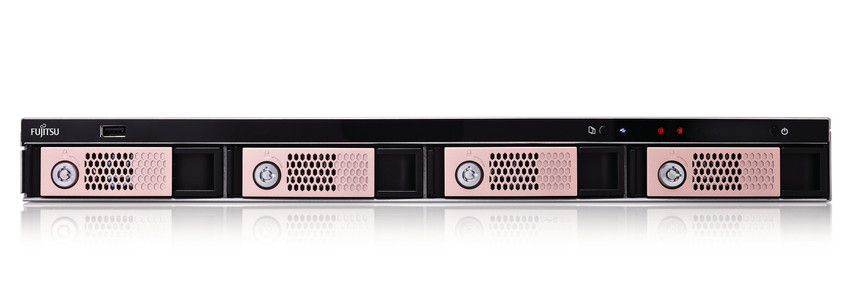

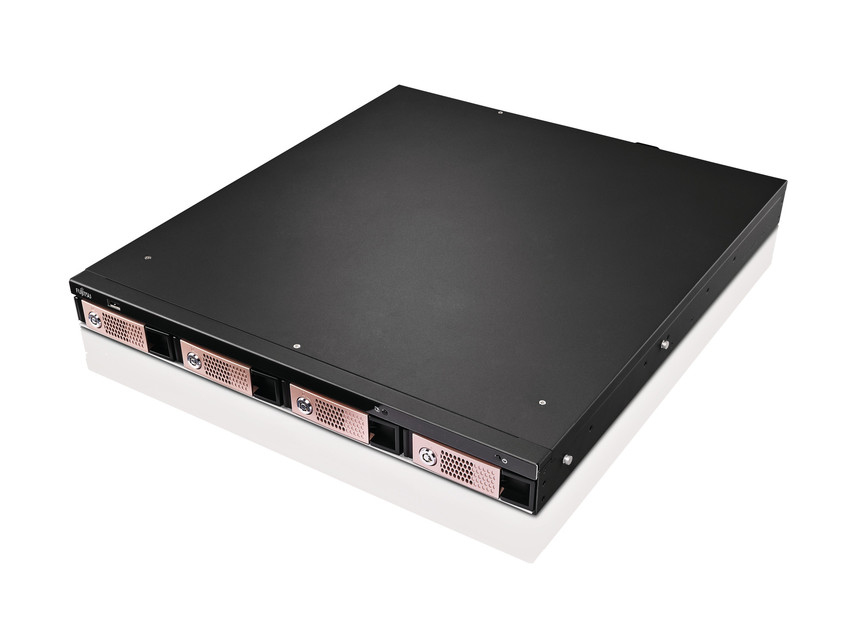

Fujitsu CELVIN NAS QR802 Rack (1U) Intel Atom®

1 GB DDR3 0 TB Black

Model QR802Part no. S26341-F103-L897?3YNBDEAN 4051554608774

66 specifications

Overview

Brand: Fujitsu
Category: NAS & Storage Servers
Model: QR802
Part numbers: S26341-F103-L897?3YNBD, S26341-F103-L897?3YOS, S26341-F103-L898?3YNBD, S26341-F103-L898?3YOS, VFY:QR802XX000E1, VFY:QR802XX010E1 +13 more
EAN / UPC: 4051554608774, 4054319099930, 4051554532284, 4051554532291 +12 more
Also known as: Fujitsu CELVIN NAS QR802 Rack (1U) Intel Atom® 1 GB DDR3 0 TB Black

66 specifications in 13 groups

Specification	Value
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	4
Storage drive capacity	0 GB
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum supported storage capacity	12 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor family	Intel Atom®
Processor frequency	2.1 GHz
Number of processors installed	1

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3ad
Cabling technology	10/100/1000Base-T(X)
Supported network protocols	TCP/IP (IPv4 /IPv6), LACP, CIFS/SMB, AFP/Netatalk2.2, NFS v3, HTTP, HTTPS, FTP, SFTP, DDNS, NTP, Telnet, SSH, iSCSI, SNMP, WebDAV, Bonjour

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	2
eSATA	Yes

Specification	Value
Buzzer	Yes
Multilingual support	Yes
Number of users	10000 user(s)
Compatible memory cards	Not supported
Management protocols	SNMP
Web-based management	Yes
Access Control List (ACL)	Yes
On/off switch	Yes
Reset button	Yes
Security algorithms	256-bit AES, 802.1x RADIUS, EAP-TLS, EAP-TTLS, FIPS 140-2, HTTPS, SSH, SSL/TLS, WPA, WPA2

Specification	Value
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2

Specification	Value
Power supply unit (PSU) capacity	250 W
Number of power supply units	2
Power consumption (typical)	52 W
Power consumption (sleep)	37 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Output power	500 W

Specification	Value
External power adapter	No
Cables included	AC, LAN (RJ-45)

Specification	Value
Operating temperature (T-T)	0 - 40 °C

Specification	Value
Certification	CE, FCC A
