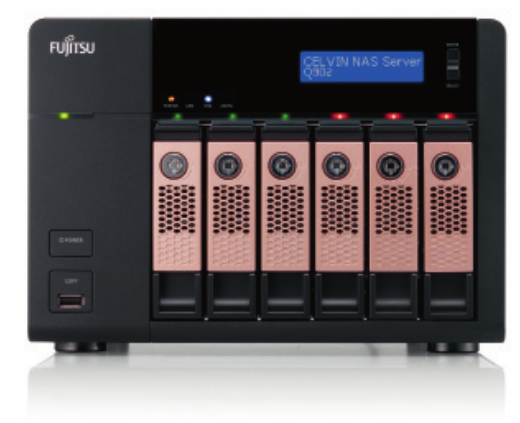

Fujitsu Q902 12TB

Model Q902 12TBPart no. S26341-F103-L962

68 specifications

Overview

68 specifications in 11 groups

Specification	Value
Total installed storage capacity	12 TB
Number of storage drives installed	6
Number of storage drives supported	6
Storage drive capacity	2 TB
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
RAID levels	0, 1, 5, 6, JBOD
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2700
Processor frequency	2.13 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
Bus type	DMI
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0D9
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B2
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s

Specification	Value
DHCP client	Yes
DHCP server	Yes
iSCSI support	Yes
Supported network protocols	TCP/IP, LACP, CIFS/SMB, AFP/Netatalk2.2, NFS v3, HTTP, HTTPS, FTP, SFTP, DDNS, NTP, Telnet, SSH, iSCSI, SNMP, WebDAV

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	2
eSATA	Yes

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Product colour	Black
LED indicators	Yes

Specification	Value
Number of users	10000 user(s)
Security algorithms	802.1x RADIUS, EAP-TLS, EAP-TTLS, WPA, WPA2

Specification	Value
Power supply unit (PSU) capacity	250 W

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel ME Firmware Version	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
