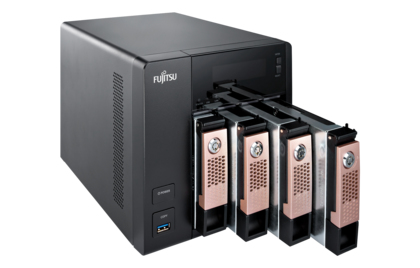

Fujitsu CELVIN NAS Q805 Tower Intel® Celeron® J1900

2 GB DDR3L 12 TB HDD Linux Kernel 2.6 Black

Model Q805Part no. S26341-F105-L876EAN 4059595483022

126 specifications

Overview

Brand: Fujitsu
Category: NAS & Storage Servers
Model: Q805
Part numbers: S26341-F105-L876, S26341-F105-L813, S26341-F105-L805, S26341-F105-L812, S26341-F105-L814, S26341-F105-L816 +8 more
EAN / UPC: 4059595483022, 4054681908588, 4058154117231, 4054681908502 +16 more
Also known as: Fujitsu CELVIN NAS Q805 Tower Intel® Celeron® J1900 2 GB DDR3L 12 TB HDD Linux Kernel 2.6 Black

126 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	12 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	3 TB
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
Maximum supported storage capacity	24 TB
RAID support	Yes
RAID levels	0, 6, 1, 5, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	NTFS, FAT32, ext3, HFS+, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J1900
Processor frequency	2 GHz
Processor boost frequency	2.42 GHz
Processor cores	4
Processor threads	4
Processor cache	2 MB
L2 cache	2 MB
CPU configuration (max)	1
ECC supported by processor	No
PCI Express configurations	1x4
PCI Express slots version	2.0
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR1SC
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	25 X 27 mm
Processor series	Intel Celeron Processor J1000 series for Desktop
Processor socket	BGA 1170
Stepping	B3
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
On-board graphics card model	Intel® HD Graphics
Maximum internal memory supported by processor	8 GB
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0
HDMI ports quantity	1

Specification	Value
On-board graphics card base frequency	688 MHz
On-board graphics card dynamic frequency (max)	854 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Buzzer	Yes
Multilingual support	Yes
Number of users	4096 user(s)
Noise level	20.3 dB
Built-in optical drive	No
On/off switch	Yes
Reset button	Yes
Security algorithms	EAP-TLS, EAP-TTLS, 802.1x RADIUS, SSL/TLS

Specification	Value
Operating system installed	Linux Kernel 2.6
Windows operating systems supported	Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 7 Enterprise, Windows 8.1 Enterprise x64, Windows 7 Enterpris
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.1 Puma, Mac OS X 10.8 Mountain Lion, Mac OS X 10.10 Yosemite, Mac OS X 10.9 Mavericks, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.0 Cheetah, Mac OS X 10.7 Lion
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2003

Specification	Value
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Power consumption (typical)	51.3 W
Power consumption (sleep)	25.1 W
Power consumption (off)	0.5 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel FDI Technology	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	4
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Certification	EAC, CE, FCC Cl.B, VCCI
Processor ARK ID	78867
