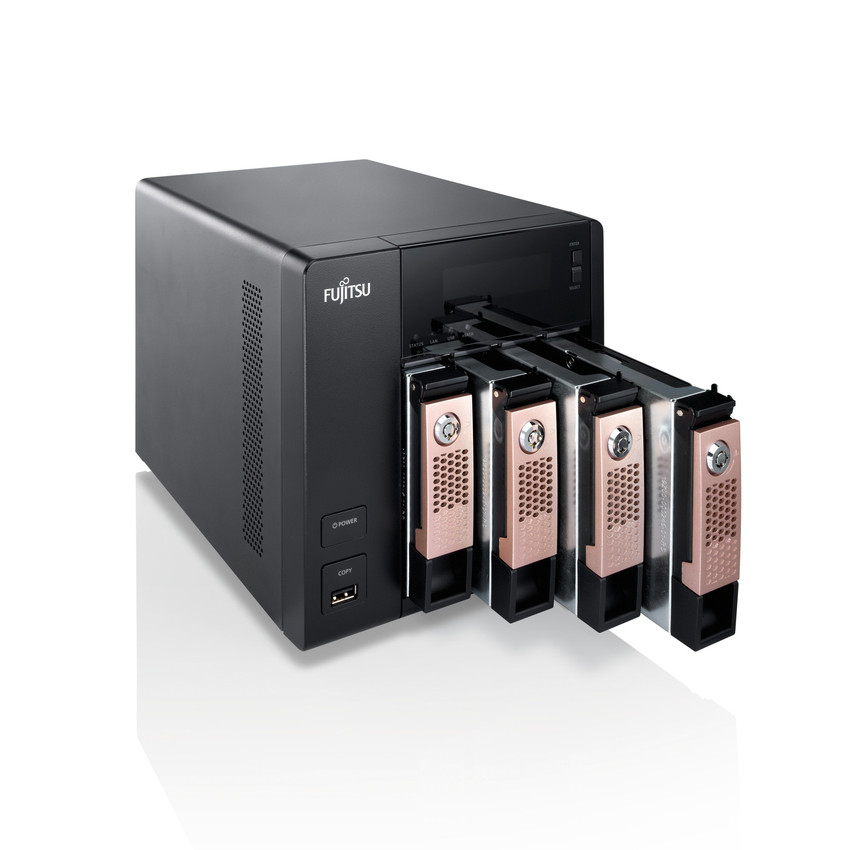

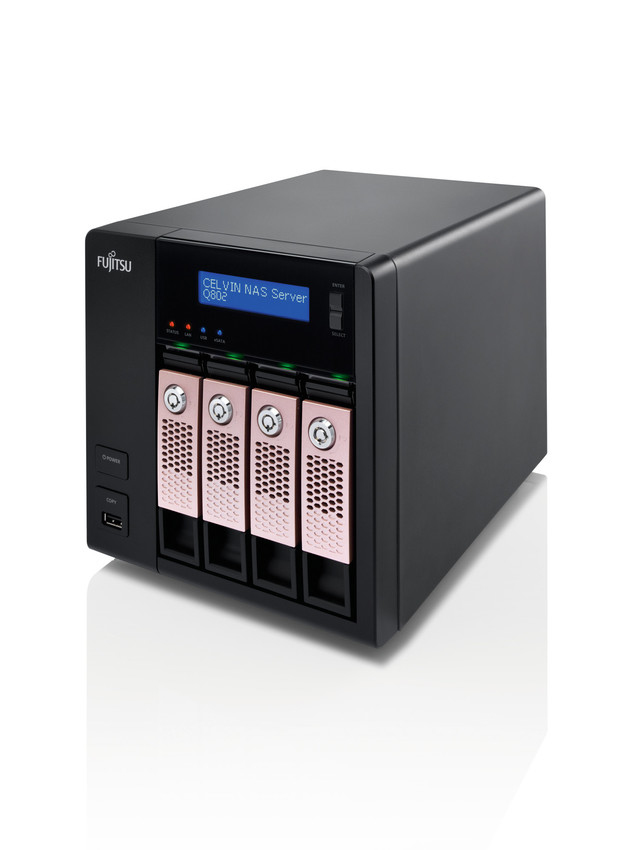

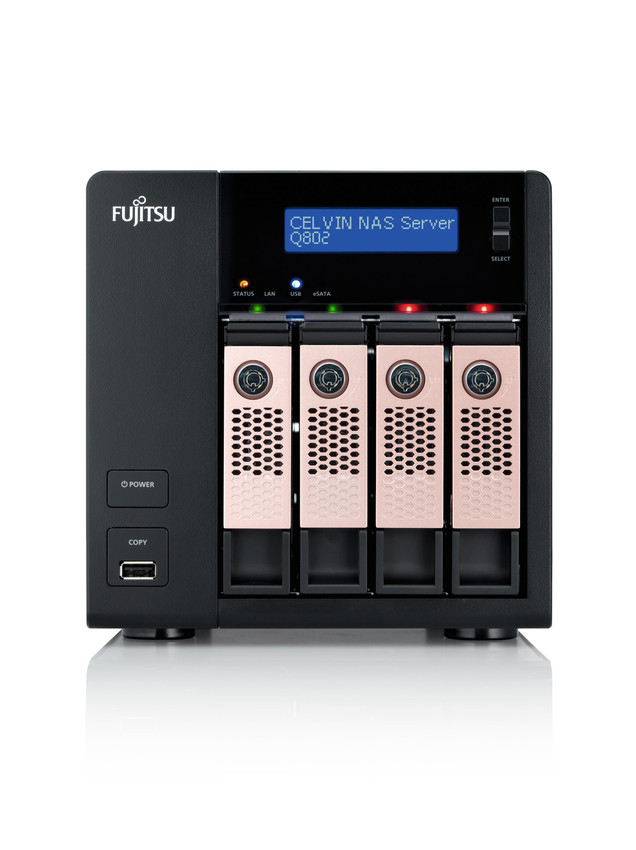

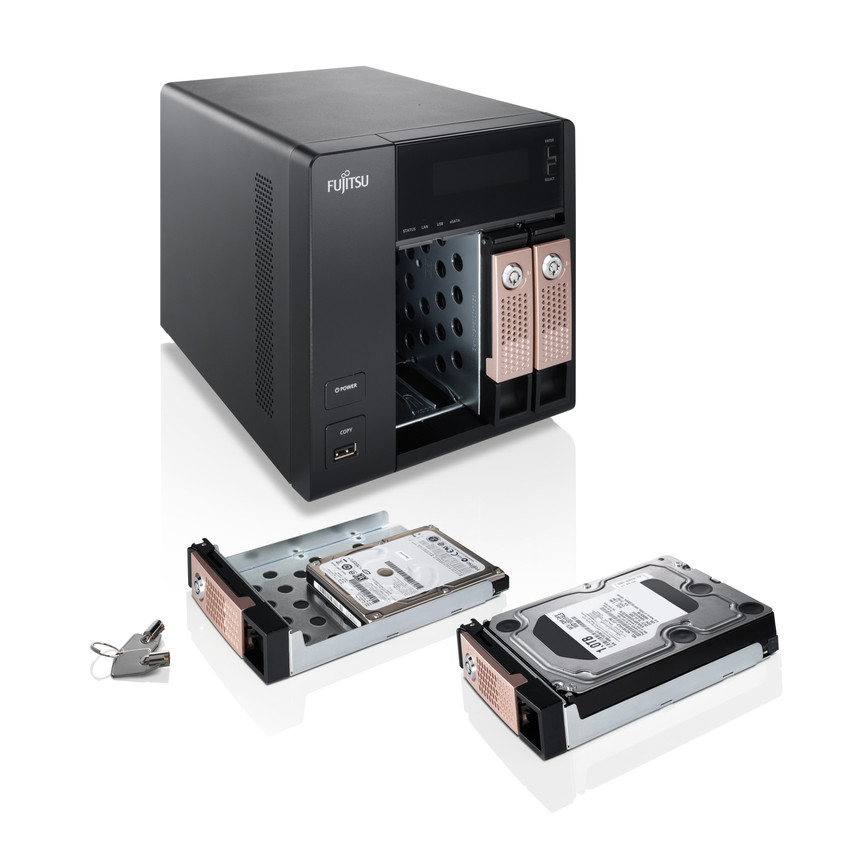

Fujitsu Q802 Bundle 4x 1TB Seagate HDD

Model Q802 Bundle 4x 1TB Seagate HDDPart no. S26341-F103-L880EAN 4053162436831

109 specifications

Overview

Brand: Fujitsu
Category: NAS & Storage Servers
Model: Q802 Bundle 4x 1TB Seagate HDD
Part numbers: S26341-F103-L880, S26341-F103-L824, S26341-F103-L802/S1
EAN / UPC: 4053162436831, 4053026431354, 4053026585880
Also known as: Fujitsu CELVIN NAS Q802 Bundle 4x 1TB Seagate HDD Desktop Intel Atom® D2700 1 GB DDR3 0 TB Black

109 specifications in 15 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Storage drive interface	Serial ATA III
Maximum supported storage capacity	16 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2700
Processor frequency	2.13 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0D9
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B2
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Data link protocols	FTP, SQLite, MySQL, UPnP/DLNA, Twonky Media, iTunes
Supported network protocols	TCP/IP (IPv4 /IPv6), CIFS/SMB, AFP/Netatalk2.2, NFS v3, HTTP, HTTPS, FTP, SFTP, DDNS, NTP, Telnet, SSH, iSCSI, SNMP, WebDAV, Bonjour

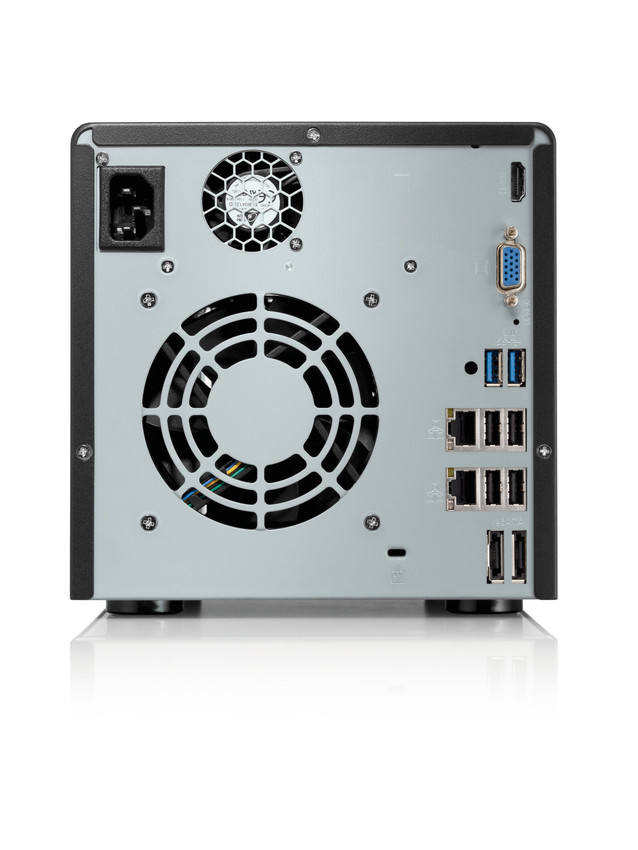

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
VGA (D-Sub) ports quantity	1
eSATA ports quantity	2
HDMI ports quantity	1

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Type	NAS
Backup function	Yes
Buzzer	Yes
Multilingual support	Yes
Management protocols	SNMP
Web-based management	Yes
On/off switch	Yes
Reset button	Yes
Security algorithms	802.1x RADIUS, EAP-TLS, EAP-TTLS, WPA, WPA2

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista

Specification	Value
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Power consumption (typical)	43 W
Power consumption (sleep)	25 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Cables included	AC
Quick start guide	Yes

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel ME Firmware Version	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Processor ARK ID	59683
