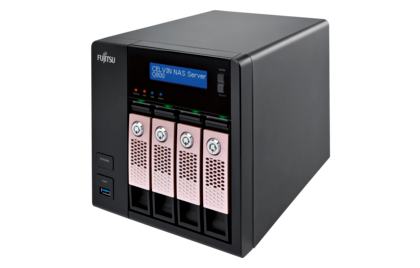

Fujitsu Q802 8TB

Model Q802 8TBPart no. S26341-F103-L862

78 specifications

Overview

78 specifications in 12 groups

Specification	Value
Total installed storage capacity	8 TB
Number of storage drives installed	4
Number of storage drives supported	4
Storage drive capacity	2 TB
Storage drive interface	Serial ATA
Storage drive size	2.5/3.5"
RAID levels	0, 1, 5, 6, 10, JBOD
Supported file systems	ext3, ext4, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
DHCP client	Yes
DHCP server	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	TCP/IP, LACP, CIFS/SMB, AFP, NFS v3, HTTP, HTTPS, FTP,SFTP(admin), DDNS, NTP, Telnet, SSH, iSCSI, SNMP,WebDAV

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	2
eSATA	Yes

Specification	Value
Product colour	Black
LED indicators	Yes

Specification	Value
Management protocols	SNMP

Specification	Value
Power supply unit (PSU) capacity	250 W
Power consumption (typical)	37 W
Power consumption (sleep)	21 W

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	0 - 40 °C

Specification	Value
Compatible operating systems	Windows XP Windows Server 2003 Windows Vista Windows 7 Mac OS X Linux UNIX
Fan	1 x 90mm
Power LED	Yes
Power requirements	100-240VAC, 50/60Hz
Certification	CE, FCC
Processor ARK ID	49490
