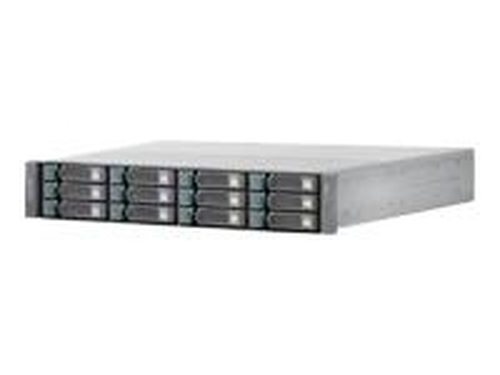

Fujitsu FibreCAT SX80
Model FibreCAT SX80Part no. D:FCSX80P3-73-5EAN 4045827785163
22 specifications
- Speed300 Mbit/s
- Weight30 kg
- Total installed storage capacity1.25 TB
- Ethernet LAN (RJ-45) ports1
- Chassis typeRack (2U)
- Management protocolsSNMP
Overview
- Speed
- 300 Mbit/s
- Weight
- 30 kg
- Total installed storage capacity
- 1.25 TB
- Ethernet LAN (RJ-45) ports
- 1
- Chassis type
- Rack (2U)
- Management protocols
- SNMP
- Brand
- Fujitsu
- Category
- NAS & Storage Servers
- Model
- FibreCAT SX80
- Part numbers
- D:FCSX80P3-73-5, D:FCSX80P4-146-5, VFY:SX800XF040IN, VFY:SX800XF130IN, D:FCSX80P1-250-5, D:FCSX80P2-500-5
- EAN / UPC
- 4045827785163, 4045827785194, 4045827785187
- Also known as
- Fujitsu FibreCAT SX80 Rack (2U) 1.25 TB
Specifications
22 specifications in 9 groups
Storage
| Specification | Value |
|---|---|
| Total installed storage capacity | 1.25 TB |
| Number of storage drives installed | 5 |
| Number of storage drives supported | 12 |
| Storage drive capacity | 250 GB |
| Storage drive interface | Serial ATA |
| Maximum supported storage capacity | 42 TB |
| RAID levels | 0, 1, 3, 5, 10, 50 |
| Hot-swap drive bays | Yes |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Management protocols | SNMP |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 650 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 30 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2003R2 (VSS/VDS), Red Hat AS 4.0/5.0, SuSE SLES 9/10, VMware ESX 3.0, 3.0.1/3.0.2, SPARC Solaris 9/10 |
| Dimensions (WxDxH) | 446 x 572 x 88 mm |
| Power requirements | AC 120/230V, 50/60Hz |
| Certification | CE, UL, VCCI B ITE, GOST, BSMI CNS 13438 B, cUL, EN 60950, GS, ICES-003, IEC 60950, EN 61000-3-3, EN55024, EN55022 B, CB, AS/NZ 3548 B, FCC 15 B, CSA C22.2, RoHS, EN300-386 |
