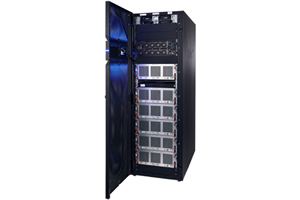

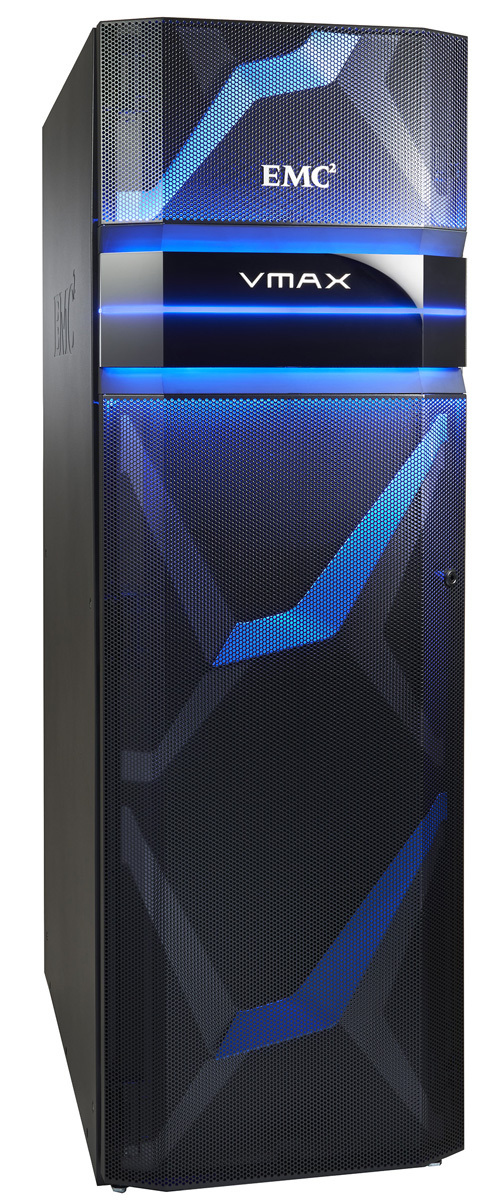

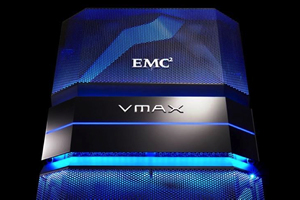

EMC VMAX100K 1920GB

Model VMAX100K 1920GBPart no. FL6F319201BUT1

81 specifications

Overview

Brand: EMC
Category: NAS & Storage Servers
Model: VMAX100K 1920GB
Part number: FL6F319201BUT1
Also known as: EMC VMAX100K 1920GB Storage server Tower Intel® Xeon® E5 V2 Family E5-2620V2 1.92 TB SSD Black

81 specifications in 11 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	1.92 TB
Installed storage drive type	SSD
Supported storage drive types	HDD & SSD
Storage drive size	2.5/3.5"
Maximum supported storage capacity	1000000 TB
RAID support	Yes
RAID levels	1, 5, 6

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2620V2
Processor frequency	2.1 GHz
Processor boost frequency	2.6 GHz
Processor cores	6
Processor threads	12
Processor cache	15 MB
Bus type	QPI
CPU configuration (max)	2
ECC supported by processor	Yes
PCI Express slots version	3.0
Physical Address Extension (PAE)	46 bit
Processor cache type	Smart Cache
Processor codename	Ivy Bridge EP
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor socket	LGA 2011 (Socket R)
Scalability	2S
System bus rate	7.2 GT/s
Tcase	71 °C
Thermal Design Power (TDP)	80 W
Maximum internal memory supported by processor	768 GB
Memory bandwidth supported by processor (max)	51.2 GB/s
Conflict-Free processor	No

Specification	Value
Chassis type	Tower
Product colour	Black

Specification	Value
Operating system version	EMC VMAX3

Specification	Value
AC input voltage	200-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	40
Number of QPI links	2
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Quad
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Processor ARK ID	75789
