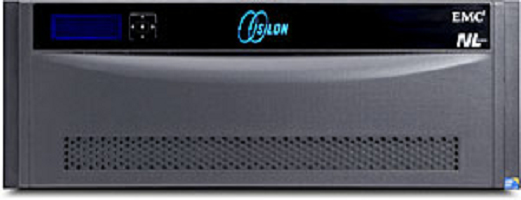

EMC NL400 NAS Rack (4U) Intel® Xeon® E5 Family E5-2407

12 GB DDR3 108 TB HDD Black

Model NL400Part no. 861-0064

85 specifications

Overview

Brand: EMC
Category: NAS & Storage Servers
Model: NL400
Part numbers: 861-0064, 861-0028, 861-0026, 861-0027, 861-0039, 861-0040 +34 more
Also known as: EMC NL400 NAS Rack (4U) Intel® Xeon® E5 Family E5-2407 12 GB DDR3 108 TB HDD Black

85 specifications in 12 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	108 TB
Number of storage drives installed	36
Number of storage drives supported	36
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	3 TB
Storage drive interface	Serial ATA III
Storage drive size	3.5"
HDD speed	7200 RPM

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2407
Processor frequency	2.2 GHz
Processor cores	4
Processor threads	4
Processor cache	10 MB
Bus type	QPI
CPU configuration (max)	2
ECC supported by processor	Yes
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor code	SR0LR
Processor codename	Sandy Bridge EN
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	45 x 42.5 mm
Processor socket	LGA 1356 (Socket B2)
Scalability	2S
Stepping	M1
System bus rate	6.4 GT/s
Thermal Design Power (TDP)	80 W
Maximum internal memory supported by processor	375 GB
Memory bandwidth supported by processor (max)	25 GB/s

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi	No
Supported network protocols	NFSv3, NFSv4, NFS (UDP/TCP), SMB1 (CIFS), SMB2, SMB3, HTTP, FTP, NDMP, SNMP, LDAP, ADS, NIS, HDFS

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	No
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Fiber ports quantity	2

Specification	Value
Type	NAS

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	1050 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	24
Number of QPI links	1
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Triple
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Processor ARK ID	64614
