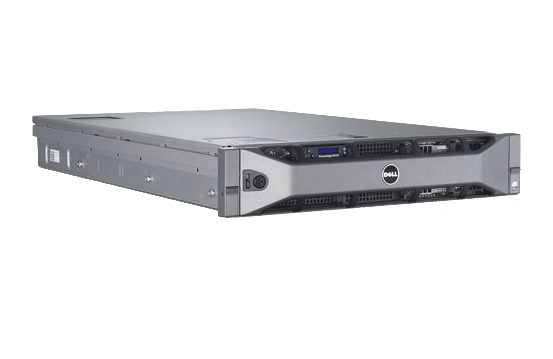

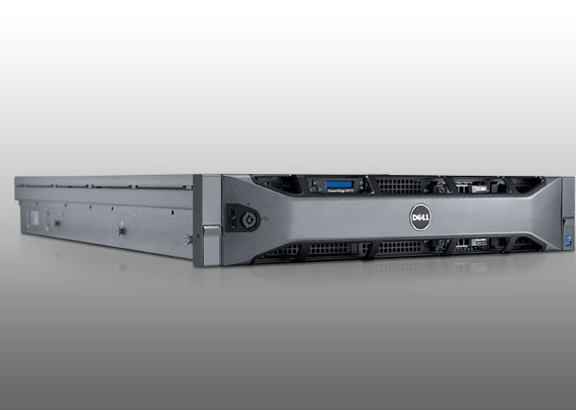

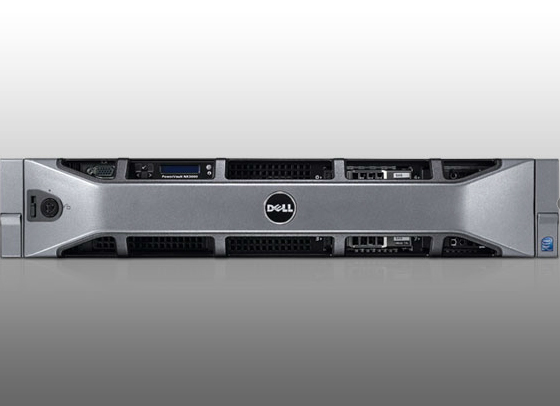

Dell PowerVault NX3000 NAS

Model PowerVault NX3000 NASPart no. 210-32151

69 specifications

Overview

Brand: Dell
Category: NAS & Storage Servers
Model: PowerVault NX3000 NAS
Part number: 210-32151
Also known as: DELL PowerVault NX3000 NAS Rack (2U) Intel® Xeon® 5000 Sequence E5506 Windows Storage Server 2008

69 specifications in 10 groups

Specification	Value
Number of storage drives supported	6
Storage drive interface	Serial ATA
Storage drive size	3.5"
Maximum supported storage capacity	12 TB
RAID levels	0, 1, 5, 6, 10, 50
Hot-swap drive bays	Yes
Supported file systems	NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5506
Processor frequency	2.13 GHz
Processor cores	4
Processor threads	4
Processor cache	4 MB
L2 cache	4 MB
Bus type	QPI
CPU configuration (max)	2
CPU multiplier (bus/core ratio)	16
ECC supported by processor	Yes
Number of processors installed	1
Physical Address Extension (PAE)	40 bit
Processor cache type	Smart Cache
Processor code	SLBF8
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	42.5 x 45 mm
Processor socket	Socket B (LGA 1366)
Stepping	D0
System bus rate	4.8 GT/s
Tcase	76 °C
Thermal Design Power (TDP)	80 W
Maximum internal memory supported by processor	144 GB
Memory bandwidth supported by processor (max)	19.2 GB/s

Specification	Value
Wi-Fi	No
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP, CIFS, NFS, FTP

Specification	Value
Ethernet LAN (RJ-45) ports	4

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Operating system installed	Windows Storage Server 2008

Specification	Value
Power supply unit (PSU) capacity	870 W
Number of power supply units	2

Specification	Value
Weight	26.1 kg
Weight (imperial)	26.1 kg (57.5 lbs)

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Number of QPI links	2
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Triple
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Compatible operating systems	Windows Storage Server
Dimensions (WxDxH)	443.1 x 680.7 x 86.4 mm
Networking features	Gigabit Ethernet
Processor ARK ID	37096
Data protection features	SIS, DFS-R, VSS
Expansion slots	2 x PCIex8 2 x PCIe2.0x4
