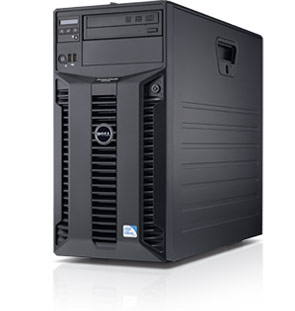

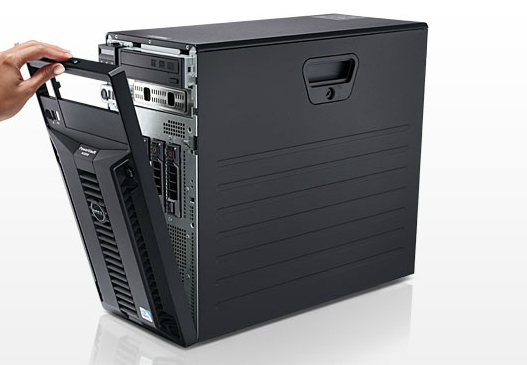

Dell PowerVault NX200 NAS

Model PowerVault NX200 NASPart no. PVNX200

82 specifications

Overview

Brand: Dell
Category: NAS & Storage Servers
Model: PowerVault NX200 NAS
Part number: PVNX200
Also known as: DELL PowerVault NX200 NAS Tower Intel® Celeron® G1101 2 GB 2 TB Windows Storage Server 2008

82 specifications in 12 groups

Specification	Value
Total installed storage capacity	2 TB
Number of storage drives installed	4
Number of storage drives supported	4
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drive size	3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	8 TB
RAID levels	5

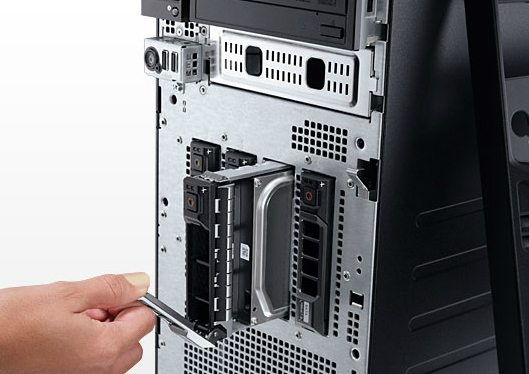

Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	G1101
Processor frequency	2.26 GHz
Processor cores	2
Processor threads	2
Processor cache	2 MB
L2 cache	2 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	17
ECC supported by processor	Yes
Number of processors installed	1
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Physical Address Extension (PAE)	36 bit
Processing Die size	81 mm²
Processor cache type	Smart Cache
Processor codename	Clarkdale
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1156 (Socket H)
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	73 W
Maximum internal memory supported by processor	16 GB
Memory bandwidth supported by processor (max)	17 GB/s

Specification	Value
Internal memory	2 GB

Specification	Value
Compliance industry standards	IEEE 802
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	CIFS, FTP

Specification	Value
Ethernet LAN (RJ-45) ports	2

Specification	Value
On-board graphics card base frequency	533 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Chassis type	Tower

Specification	Value
Optical drive type	DVD-ROM

Specification	Value
Operating system installed	Windows Storage Server 2008

Specification	Value
Power supply unit (PSU) capacity	375 W
Number of power supply units	1

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	1
Number of Processing Die Transistors	382 M
Physical Address Extension (PAE)	Yes
Thermal Monitoring Technologies	No
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Compatible operating systems	Windows Storage Server
Dimensions (WxDxH)	218 x 521 x 440 mm
Networking features	Gigabit Ethernet
Processor ARK ID	43523
Data protection features	VSS
Expansion slots	2 x PCIex8 1 x PCIex16 2 x PCIex1
RAID controller type	PERC S300
