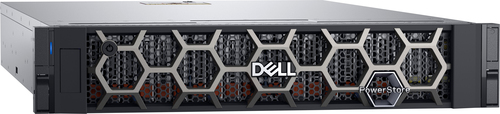

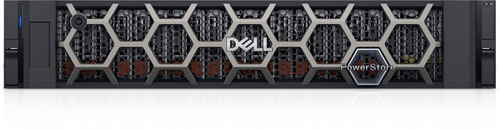

PowerStore 3200Q
Model PowerStore 3200QPart no. PS_3200Q
30 specifications
- ProcessorIntel® Xeon®
- TypeStorage server
- ColourBlack
- Storage drives installedYes
- Processor manufacturerIntel
- Maximum RAM supported768 GB
Overview
- Processor
- Intel® Xeon®
- Type
- Storage server
- Colour
- Black
- Storage drives installed
- Yes
- Processor manufacturer
- Intel
- Maximum RAM supported
- 768 GB
- Brand
- Dell
- Category
- NAS & Storage Servers
- Model
- PowerStore 3200Q
- Part number
- PS_3200Q
- Also known as
- DELL PowerStore 3200Q Storage server Rack (2U) Intel® Xeon® 66 TB SSD Black
Specifications
30 specifications in 10 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 66 TB |
| Number of storage drives installed | 11 |
| Number of storage drives supported | 25 |
| Installed storage drive type | SSD |
| Supported storage drive types | SSD |
| Storage drive capacity | 6 TB |
| Storage drive size | 2.5" |
| RAID support | No |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor frequency | 2.1 GHz |
| Processor cores | 64 |
Memory
| Specification | Value |
|---|---|
| Maximum RAM supported | 768 GB |
| Memory form factor | DIMM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Type | Storage server |
| Device class | Large Enterprise Business |
| Backup function | Yes |
Software
| Specification | Value |
|---|---|
| Bundled software | PowerStore Base SW |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 1800 W |
| AC input voltage | 220 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 447.2 mm |
| Depth | 653 mm |
| Height | 87.2 mm |
Other features
| Specification | Value |
|---|---|
| I/O ports | 16GB FC 4 Port IO Module Pair |
