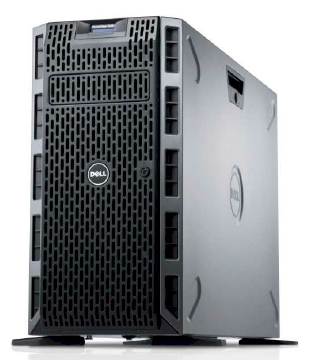

Dell PowerEdge T620

Model PowerEdge T620Part no. 210-39147

66 specifications

Overview

Brand: Dell
Category: NAS & Storage Servers
Model: PowerEdge T620
Part number: 210-39147
Also known as: DELL PowerEdge T620 Rack (5U) Intel® Xeon® E5 Family E5-2609 Silver

66 specifications in 9 groups

Specification	Value
Number of storage drives supported	32
Storage drive interface	Serial ATA
Storage drive size	2.5/3.5"
Maximum supported storage capacity	36 TB

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2609
Processor frequency	2.4 GHz
Processor cores	4
Processor threads	4
Processor cache	10 MB
Bus type	QPI
CPU configuration (max)	2
CPU multiplier (bus/core ratio)	24
ECC supported by processor	Yes
Motherboard chipset	Intel C600
Number of processors installed	2
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45.0 mm
Processor socket	LGA 2011 (Socket R)
Scalability	2S
Stepping	M1
System bus rate	6.4 GT/s
Tcase	70 °C
Thermal Design Power (TDP)	80 W
Maximum internal memory supported by processor	750 GB
Memory bandwidth supported by processor (max)	34.1 GB/s

Specification	Value
Maximum RAM supported	768 GB
Memory slots	24

Specification	Value
Ethernet LAN (RJ-45) ports	2

Specification	Value
External power adapter	Yes

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	40
Number of QPI links	2
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Quad
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
Compatible operating systems	Windows Server 2008 R2 SP1, x64 (Hyper-V v2), Windows HPC Server 2008, Windows Small Business Server 2011, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Optional Embedded Hypervisors: Citrix XenServer/VMware vSphere
Host interface	SAS, SATA, SSD
Interface type	PCIe
Networking features	Gigabit Ethernet
Processor ARK ID	64588
