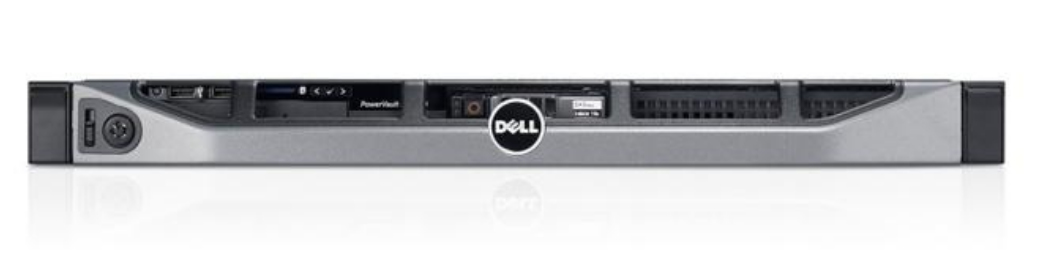

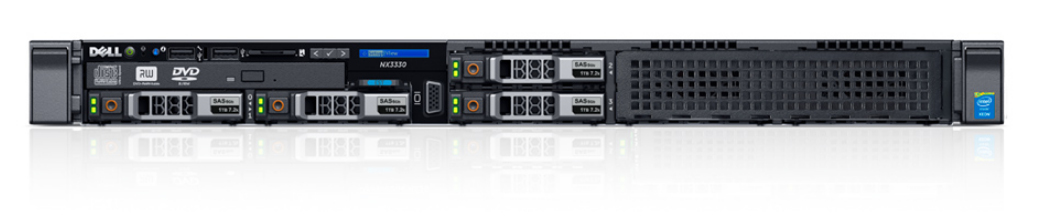

Dell NX3330 Storage server Rack (1U) Intel Xeon E5 v3 E5-2609V3

32 GB 0.6 TB HDD Windows Storage Server 2012 R2 Black, Grey

Model NX3330Part no. DSPVNX3330

97 specifications

Overview

Brand: Dell
Category: NAS & Storage Servers
Model: NX3330
Part numbers: DSPVNX3330, PV_NX3330_1060
Also known as: DELL NX3330 Storage server Rack (1U) Intel Xeon E5 v3 E5-2609V3 32 GB 0.6 TB HDD Windows Storage Server 2012 R2 Black, Grey

97 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	0.6 TB
Number of storage drives installed	1
Number of storage drives supported	2
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	300 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drive size	2.5"
HDD speed	10000 RPM
RAID support	Yes
RAID levels	1
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E5 v3
Processor model	E5-2609V3
Processor frequency	1.9 GHz
Processor cores	6
Processor threads	6
Processor cache	15 MB
Bus type	QPI
CPU configuration (max)	2
ECC supported by processor	Yes
Number of processors installed	2
PCI Express slots version	3.0
Physical Address Extension (PAE)	46 bit
Processor cache type	Smart Cache
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Scalability	2S
Stepping	M1
System bus rate	6.4 GT/s
Tcase	70.9 °C
Thermal Design Power (TDP)	85 W
On-board graphics card model	Not available
Maximum internal memory supported by processor	768 GB
Memory bandwidth supported by processor (max)	51 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	32 GB

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Fiber ports quantity	2
Fiber optic connector	SFP+

Specification	Value
Operating system installed	Windows Storage Server 2012 R2

Specification	Value
Power supply unit (PSU) capacity	750 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes

Specification	Value
Cables included	AC

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	40
Number of QPI links	2
Physical Address Extension (PAE)	Yes
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Quad
Memory types supported by processor	DDR4-SDRAM

Specification	Value
Processor ARK ID	81897
