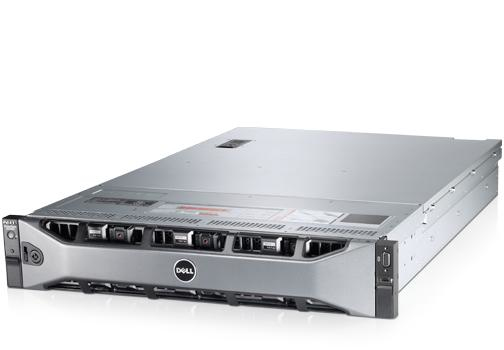

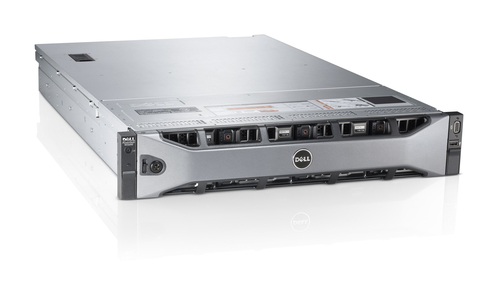

Dell PowerVault NX3200 NAS Rack (2U) Intel® Xeon® E5 V2 Family E5-2690V2

16 GB DDR3 4.6 TB HDD Windows Storage Server 2008 R2 Grey

Model NX3200Part no. 3200-7632EAN 5397063697632

88 specifications

Overview

Brand: Dell
Category: NAS & Storage Servers
Model: NX3200
Part number: 3200-7632
EAN / UPC: 5397063697632
Also known as: DELL PowerVault NX3200 NAS Rack (2U) Intel® Xeon® E5 V2 Family E5-2690V2 16 GB DDR3 4.6 TB HDD Windows Storage Server 2008 R2 Grey

88 specifications in 12 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	4.6 TB
Number of storage drives installed	6
Number of storage drives supported	12
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive interface	Serial Attached SCSI (SAS)
Storage drive size	2.5/3.5"
HDD speed	10000 RPM
Maximum supported storage capacity	36 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2690V2
Processor frequency	3 GHz
Processor boost frequency	3.6 GHz
Processor cores	10
Processor threads	20
Processor cache	25 MB
L3 cache	10 MB
Bus type	QPI
CPU configuration (max)	2
ECC supported by processor	Yes
PCI Express slots version	3.0
Physical Address Extension (PAE)	46 bit
Processor cache type	L3
Processor codename	Ivy Bridge EP
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor socket	LGA 2011 (Socket R)
Scalability	2S
System bus rate	8 GT/s
Tcase	88 °C
Thermal Design Power (TDP)	130 W
Maximum internal memory supported by processor	768 GB
Memory bandwidth supported by processor (max)	59.7 GB/s
Conflict-Free processor	No

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	No

Specification	Value
Chassis type	Rack (2U)
Product colour	Grey

Specification	Value
Type	NAS
Device class	Small & Medium Business

Specification	Value
Operating system installed	Windows Storage Server 2008 R2

Specification	Value
Power supply unit (PSU) capacity	750 W

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	40
Number of QPI links	2
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Quad
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Processor ARK ID	75279
