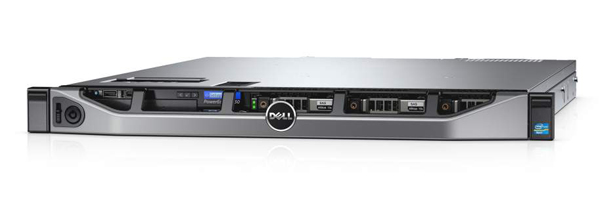

Dell EMC XC430 Xpress

Model EMC XC430 XpressPart no. XC430-4077EAN 5397184074091

92 specifications

Overview

Brand: Dell
Category: NAS & Storage Servers
Model: EMC XC430 Xpress
Part numbers: XC430-4077, XC430-4084, XC430-4091
EAN / UPC: 5397184074091, 5397184074077, 5397184074084
Also known as: DELL EMC XC430 Xpress Storage server Rack (1U) Intel® Xeon® E5 v4 E5-2609V4 64 GB DDR4 6.48 TB HDD+SSD Black, Silver

92 specifications in 11 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	6.48 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD+SSD
Supported storage drive types	HDD & SSD
Storage drive interface	Serial Attached SCSI (SAS)
Storage drive size	2.5/3.5"
HDD speed	7200 RPM
RAID support	Yes
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-2609V4
Processor frequency	1.7 GHz
Processor cores	8
Processor threads	8
Processor cache	20 MB
Bus type	QPI
CPU configuration (max)	2
ECC supported by processor	Yes
Number of processors installed	1
PCI Express configurations	1x4, 1x8, 1x16
PCI Express slots version	3.0
Physical Address Extension (PAE)	46 bit
Processor cache type	Smart Cache
Processor code	SR2P1
Processor codename	Broadwell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	45 x 52.5 mm
Processor series	Intel Xeon E5-2600 v4
Processor socket	LGA 2011-v3
Scalability	2S
Stepping	R0
System bus rate	6.4 GT/s
Tcase	74 °C
Thermal Design Power (TDP)	85 W
On-board graphics card model	Not available
Maximum internal memory supported by processor	1.53 TB
Memory bandwidth supported by processor (max)	59.7 GB/s
Conflict-Free processor	Yes

Specification	Value
Internal memory	64 GB
Internal memory type	DDR4

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Fiber ports quantity	0
VGA (D-Sub) ports quantity	1
Serial ports quantity	1

Specification	Value
Type	Storage server

Specification	Value
Power supply unit (PSU) capacity	550 W
Redundant power supply (RPS) support	Yes
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	40
Number of QPI links	2
Physical Address Extension (PAE)	Yes
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Quad
Memory types supported by processor	DDR4-SDRAM

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
Dell E-Value Code	XC430X_Entry
Processor ARK ID	92990
