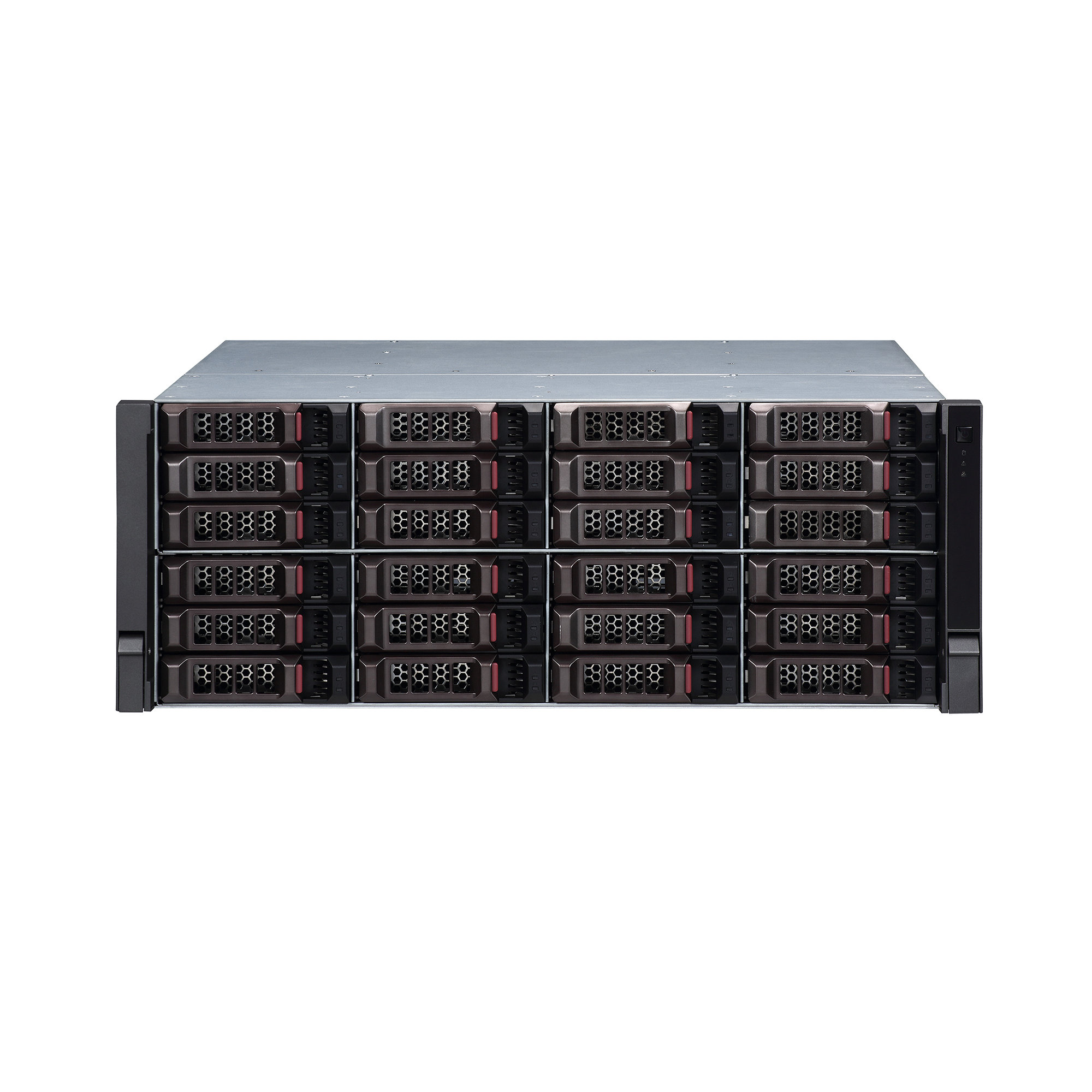

Dahua Technology EVS5024S-R NAS/storage server

Dahua Technology EVS5024S-R NAS/storage server

4 TB Embedded LINUX Black

Model EVS5024S-R

50 specifications
  • TypeStorage server
  • OSEmbedded LINUX
  • Weight27 kg
  • ColourBlack
  • Storage drives installedNo
  • Processor operating modes64-bit
See all specifications

Overview

Type
Storage server
OS
Embedded LINUX
Weight
27 kg
Colour
Black
Storage drives installed
No
Processor operating modes
64-bit
Brand
Dahua Technology
Model
EVS5024S-R
Part number
EVS5024S-R
Also known as
Dahua Technology EVS5024S-R NAS/storage server 4 TB Embedded LINUX Black

Specifications

50 specifications in 12 groups

Storage

Storage drives installedNo
Total installed storage capacity4 TB
Number of storage drives supported24
Supported storage drive typesHDD
Supported storage drive interfacesSerial ATA, Serial ATA II, Serial ATA III
Maximum supported storage capacity144 TB
RAID supportYes
RAID levels0, 1, 3, 4, 5, 6, 10, 50, 60, JBOD
Hot-swap drive baysYes

Processor

Processor operating modes64-bit

Memory

Flash memory4096 MB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
Supported network protocolsHTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTP, RTCP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, iSCSI, SMB, NFS, FTP

Ports & interfaces

Ethernet LAN (RJ-45) ports5
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity2
eSATA ports quantity1
RS-232 ports1
External mini-SAS ports2

Design

Cooling typeActive
Product colourBlack
Number of fans1 fan(s)
Fan diameter8 cm

Performance

TypeStorage server
Backup functionYes
Backup featuresUSB drive
Number of users128 user(s)
Web-based managementYes
Mean time between failures (MTBF)100100 h

Software

Operating system installedEmbedded LINUX

Power

Redundant power supply (RPS) supportYes
Power consumption (max)400 W
Power consumption (typical)200 W
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Fan voltage12 V
Output current1.5 A

Weight & dimensions

Width482.6 mm
Depth494 mm
Height175 mm
Weight27 kg
Package weight38 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)-20 - 70%
Operating altitude-60 - 3000 m

Other features

CertificationCE, FCC, UL
