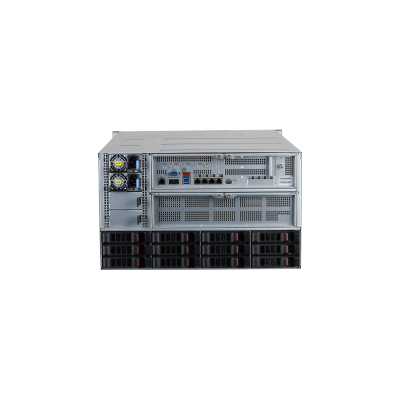

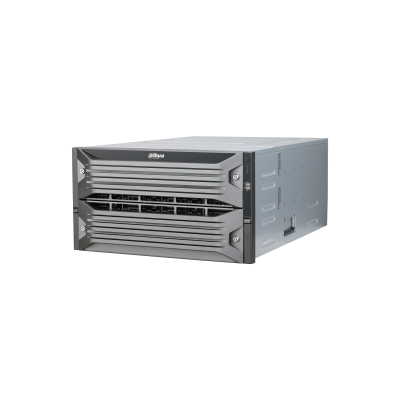

Dahua Technology DHI-EVS7148S NAS/storage server Compact
Dahua Technology

DHI-EVS7148S NAS/storage server Compact

8 GB HDD Grey

Model DHI-EVS7148SEAN 6939554967412

58 specifications
  • Memory8 GB
  • TypeNAS
  • Weight36 kg
  • ColourGrey
  • Storage drives installedYes
  • Ethernet LAN (RJ-45) ports11
See all specifications

Overview

Memory
8 GB
Type
NAS
Weight
36 kg
Colour
Grey
Storage drives installed
Yes
Ethernet LAN (RJ-45) ports
11
Brand
Dahua Technology
Model
DHI-EVS7148S
Part number
DHI-EVS7148S
EAN / UPC
6939554967412
Also known as
Dahua Technology DHI-EVS7148S NAS/storage server Compact 8 GB HDD Grey

Specifications

58 specifications in 10 groups

Storage

Storage drives installedYes
Number of storage drives supported48
Installed storage drive typeHDD
Supported storage drive typesHDD
Storage drive interfaceM.2, Near Line SAS (NL-SAS), Serial ATA
Supported storage drive interfacesM.2, Near Line SAS (NL-SAS), Serial ATA
Maximum supported storage capacity16 TB
System drive typeHDD
System drive interfaceSerial Attached SCSI (SAS)
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60, JBOD
Hot-swap drive baysYes

Memory

Internal memory8 GB
Maximum RAM supported64 GB

Network

Ethernet LANYes
Ethernet LAN data rates100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)10000 Mbit/s
Wi-FiNo

Ports & interfaces

Ethernet LAN (RJ-45) ports11
USB portNo
Fiber ports quantity2
HDMI ports quantity1
Serial ports quantity1
External mini-SAS ports2
Number of SATA III connectors1
PCI Express x8 (Gen 4.x) slots1

Design

Chassis typeCompact
Cooling typeActive
Product colourGrey
Number of fans2 fan(s)

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud
Video input channels512 channels
Playback modesFast play, Forward, Pause, Repeat, Reverse, Slow play, Speed Adjust
Management protocolsRTP; RTCP; RTSP; UDP; HTTP; NTP; SNMP; iSCSI; FTP; SMB; NFS
Web-based managementYes
Access Control List (ACL)Yes
Remotely operatedYes

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity800 W
Number of power supply units2
AC input voltage100-240 V
AC input frequency50-60 Hz
Output current8 A
Power cable current4 A

Weight & dimensions

Width482.6 mm
Depth736.5 mm
Height261.4 mm
Weight36 kg
Package weight75 kg

Operational conditions

Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 80%
Operating altitude0 - 5000 m
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-20 - 70 °C

Other features

CertificationCE: EN 55024; EN 55032; EN 55035; EN 50130-4; EN 61000-3-2; EN 61000-3-3; EN 62368 FCC: ANSI C63.4, 47 CFR PART 15B Subpart B
