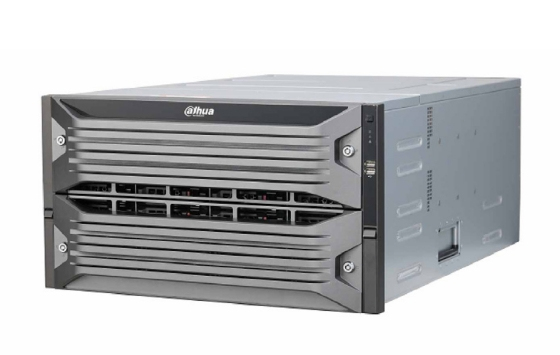

DHI-EVS7148D-V2 NAS/storage server Compact
8 GB HDD Grey
Model DHI-EVS7148D-V2
60 specifications
- Memory8 GB
- TypeNAS
- Weight36 kg
- ColourGrey
- Storage drives installedYes
- Ethernet LAN (RJ-45) ports11
Overview
- Memory
- 8 GB
- Type
- NAS
- Weight
- 36 kg
- Colour
- Grey
- Storage drives installed
- Yes
- Ethernet LAN (RJ-45) ports
- 11
- Brand
- Dahua Technology
- Category
- NAS & Storage Servers
- Model
- DHI-EVS7148D-V2
- Part number
- DHI-EVS7148D-V2
- Also known as
- Dahua Technology DHI-EVS7148D-V2 NAS/storage server Compact 8 GB HDD Grey
Specifications
60 specifications in 10 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Number of storage drives supported | 48 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD |
| Storage drive interface | M.2, Near Line SAS (NL-SAS), Serial ATA |
| Supported storage drive interfaces | M.2, Near Line SAS (NL-SAS), Serial ATA |
| Maximum supported storage capacity | 16 TB |
| System drive type | HDD |
| System drive interface | Serial Attached SCSI (SAS) |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Hot-swap drive bays | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum RAM supported | 64 GB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 11 |
| USB port | No |
| Fiber ports quantity | 2 |
| HDMI ports quantity | 1 |
| Serial ports quantity | 1 |
| External mini-SAS ports | 2 |
| Number of SATA III connectors | 1 |
| PCI Express x8 (Gen 4.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Compact |
| Cooling type | Active |
| Product colour | Grey |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud |
| Video input channels | 512 channels |
| Management protocols | RTP; RTCP; RTSP; UDP; HTTP; NTP; SNMP; iSCSI; FTP; SMB; NFS |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Remotely operated | Yes |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 800 W |
| Number of power supply units | 2 |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Output current | 8 A |
| Power cable current | 4 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 682 mm |
| Depth | 957 mm |
| Height | 795 mm |
| Weight | 36 kg |
| Package width | 482.6 mm |
| Package depth | 261.4 mm |
| Package height | 736.5 mm |
| Package weight | 75 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 5000 m |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
