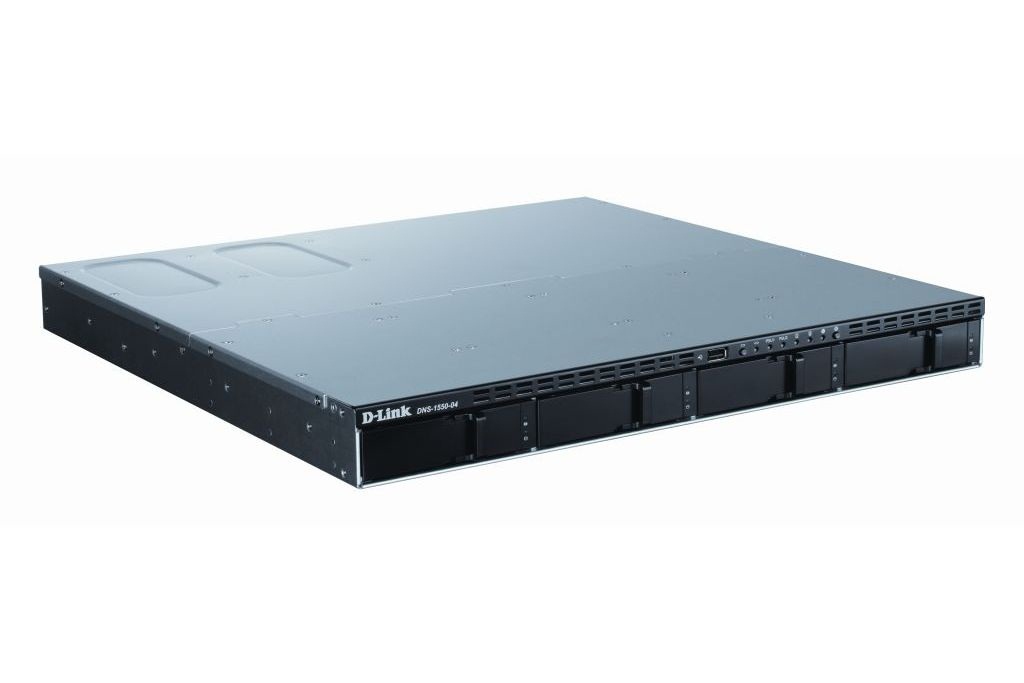

D-Link ShareCenter Pro 1550

Model ShareCenter Pro 1550Part no. DNS-1550-04EAN 790069360046

74 specifications

Overview

74 specifications in 11 groups

Specification	Value
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	4
Storage drive capacity	0 GB
Storage drive interface	Serial ATA II
Maximum supported storage capacity	12 TB
RAID levels	0, 1, 5, 6, 10, JBOD

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
Compatible processor series	Intel Atom®
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB

Specification	Value
iSCSI support	Yes
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	DHCP, TCP/IP, iSCSI, HTTP/HTTPS, IPv6, SSH, SMB/CIFS, NFS, FTP, SNMP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	5

Specification	Value
Multilingual support	Yes
Security algorithms	SSH, SSL/TLS

Specification	Value
Power supply unit (PSU) capacity	226 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes

Specification	Value
Weight	7.4 kg

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Specification	Value
Compatible operating systems	Windows Mac Linux Unix
Dimensions (WxDxH)	429 x 442 x 44 mm
Host interface	RJ-45
Interface type	USB 2.0
Minimum system requirements	Internet Explorer 7+
Networking features	Gigabit Ethernet
Ports quantity	7
Certification	BSMI, C-Tick, CE, FCC, UK, VCCI
Processor ARK ID	49490
