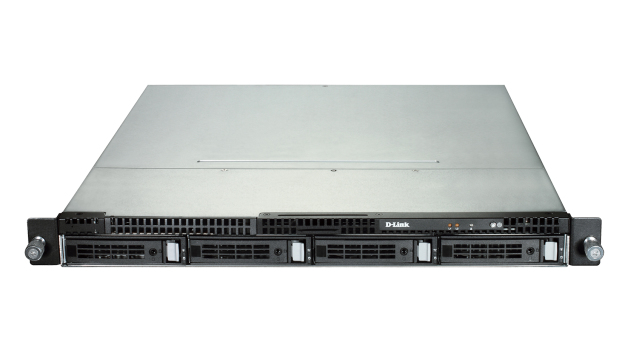

D-Link DNS-1560-04 NAS/storage server Rack (1U) Intel Atom® D2550

4 GB Black

Model DNS-1560-04EAN 790069406355

85 specifications

Overview

Brand: D-Link
Category: NAS & Storage Servers
Model: DNS-1560-04
Part number: DNS-1560-04
EAN / UPC: 790069406355
Also known as: D-Link DNS-1560-04 NAS/storage server Rack (1U) Intel Atom® D2550 4 GB Black

85 specifications in 13 groups

Specification	Value
Storage drives installed	No
Number of storage drives supported	4
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2550
Processor frequency	1.86 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0VY
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B3
Thermal Design Power (TDP)	10 W
Tjunction	100 C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	4 GB

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Jumbo frames support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	SMB, NFS, AFP, FTP, WebDAV, iSCSI

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Fiber ports quantity	0
VGA (D-Sub) ports quantity	1

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Type	Storage server
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud
Number of users	4096 user(s)
Network Time Protocol (NTP) client	Yes
S.M.A.R.T. support	Yes
Security algorithms	HTTPS, SSH, SSL/TLS
System log	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
