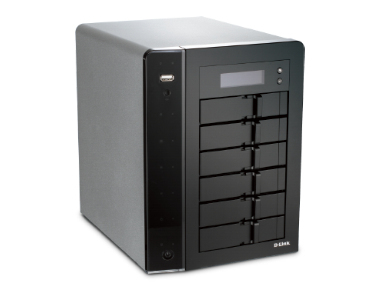

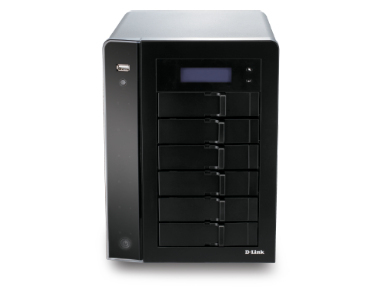

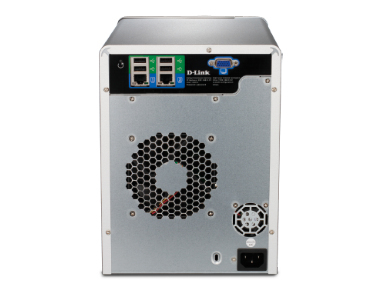

D-Link DNS-1250-06 NAS/storage server Tower Intel Atom® D525

2 GB 18 TB Black

Model DNS-1250-06EAN 753253010059

71 specifications

Overview

Brand: D-Link
Category: NAS & Storage Servers
Model: DNS-1250-06
Part number: DNS-1250-06
EAN / UPC: 753253010059, 790069363191, 7900693631914
Also known as: D-Link DNS-1250-06 NAS/storage server Tower Intel Atom® D525 2 GB 18 TB Black

71 specifications in 12 groups

Specification	Value
Total installed storage capacity	18 TB
Storage drive capacity	3 TB
Storage drive interface	Serial ATA
Storage drive size	3.5"
Maximum supported storage capacity	18 TB
RAID levels	0, 1, 5, 6, 10, 30, 50, JBOD

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
Bus type	DMI
Compatible processor series	Intel® Pentium® Dual-Core
ECC supported by processor	No
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB

Specification	Value
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Compliance industry standards	IEEE 802.3ad
Supported network protocols	TCP/IP, iSCSI, HTTP/HTTPS, IPv4/IPv6, SSH, CIFS/SMB/Samba, NFS, AFP, FTP, FTP over SSL, WebDAV, SNMP, Telnet, LLTD, DDNS, PXE Server, LUN Mapping & LUN Masking, NTP

Specification	Value
Number of users	4096 user(s)

Specification	Value
Number of power supply units	1

Specification	Value
Weight	5.2 kg

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85%
